Autel MaxiCOM MK906S Pro
As Autel 2024 newest diagnostic scan tool and upgraded version of MS906BT/MK906 Pro, MK906S Pro has been upgraded from both hardware and software. Autel MK906S Pro is equipped with Android 10.0 OS/Exynos octa-core processor with 4G RAM & 128GB for super smooth operation/8-inch 1920*1200 touchscreen/16MP & 16MP double cameras/11600mAh battery.
Top 7 Highlights
-
No Blocking - You can use MK906S Pro all over the world
-
Top-Level Hardware - The latest MK906S Pro released in 2024 has more advanced hardware than MS906BT: Octa-core processor; 4G RAM/128G ROM; 8.0" LED; Front: 16 Megapixel/Rear: 16 Megapixel; 11600 mAh battery capacity.
-
OE-Level Full Systems Diagnosis - MaxiCOM MK906S Pro can get OE-level analysis of ECM, transmission, ABS, airbag, SAS, DPF, EVAP, TPMS, BMS, EPB among other on-board systems. You can read, clear their codes thus turning off warning lights; check freeze frame data and view live stream in graph to evaluate the vehicle’s health at a glance.
-
36+ Service Functions - MK906S Pro has 36+ service function options, mainly including Oil Reset, EPB service, TPMS ID Relearn, ABS Auto Bleed, SAS Calibration , DPF Regeneration and etc
-
ECU Coding - Autel MaxiSys MS906S Pro scanner has ECU Coding features just like MS908/ MK908. You can use it to match/ code/ relearn/ the blank modules to the on-board systems after replacement.
-
Battery Tester - Autel automotive tool MK906S Pro works with Battery Tester to check 12V vehicle battery and view the health status of the vehicle's battery and electrical system. (Autel BT506)
-
1-Year Free Software Update - After you register and log in, you can enjoy a free software upgrade for one year. After one year, if you do not choose to continue to purchase the upgrade service, it will not affect the normal use of the device
-
DoIP/CAN & CAN FD Latest Protocol - MK906S Pro now supports oIP/CAN & CAN FD Protocol. You no longer need to buy a separate adapter.
-
Autel Cloud Service - MaxiCOM MK906S Pro supports Autel Cloud Service, including remote expert service, one click help, device management/report management, intelligent and comprehensive.
Basic Functions
Autel MaxiCOM MK906S Pro Main Features
- 8-inch, 1920 x 1200 high-resolution touchscreen tablet, Samsung Exynos Octa-core processor with 128 GB storage and running Android 10.0 operating system.
- Long-lasting 11,600 mAh rechargeable battery, 16 MP front camera and 16 MP rear camera.
- MaxiCVI V200 wireless Bluetooth vehicle communication interface supporting the latest communication protocols.
- Comprehensive diagnostics on 1996 and newer U.S., Asian and European vehicles
- AutoScan: Scan all available systems, including ADAS identification
- Read/Erase Codes, View Freeze Frame and Live Data
- Perform Active Tests (bi-directional controls), Coding and Adaptations
- AutoVIN/Scan VIN for rapid vehicle identification
- Perform ADAS (inc. Camera/s, Radar, LiDAR, Night Vision) Systems Calibrations with additional purchase.
- Battery analyzation capability*
- Cloud-based Reports and Data Management
- Remote Expert (coming soon)
- With additional purchase of the MaxiBAS BT506 battery and electrical system tester.
Autel MaxiCOM MK906S Pro, bluetooth scanner is loaded with 36+ reset functions for in-depth and comprehensive repairing & maintenance.
-
Oil Reset - Reset the oil change calculator in the engine and automatic transmission
-
EPB - Replacement of brake pads on vehicles with an electric parking brake
-
SAS - Adaptation of the sensor to the angular position of the steering wheel
-
DPF - Regeneration of diesel particulate filter
-
Brake Bleed - ABS Brake Bleeding
-
IMMO - Immobilizer keys functions
-
BMS - Battery registration and reset
- Seats, Odometer, Injector, CHG tire size, TEC Learn, Suspension, Throttle, WIN OR ROOF, Lang Change, Headlamp.
Note: The reset service does not work normally on all vehicles. In order to ensure that the Autel diagnostic tool can solve the problems you encounter, please provide the VIN of your vehicle and your needs, and we will reply to you an email within one working day. 👉Contact us👈
Note: MaxiCOM MK906S Pro only supports English.
Autel MaxiCOM MK906S Pro Reset Services
Advanced Functions
Bi-Directional Control (Active Test)
MaxiCOM MK906S Pro automotive diagnostic scanner comes with bi-directional control capability to perform active tests to determine the integrity of a system or parts like ABS, window, door, roof, by reading the ECU data, or by monitoring the operation of the actuators, such as switching a solenoid, relay.
Note: Available tests vary depending on the manufacturer, year, and model, and only the available tests display in the menu. To check compatibility with your vehicle, please refer to Autel website or consult us directly
ECU Coding
Autel MK906S Pro professional auto diagnostic tool comes with advanced ECU coding function. ECU Coding allows you to establish a data link to the electronic control system of the test vehicle via the VCI device for vehicle diagnosis, service or coding. You can operate functional tests, retrieve vehicle diagnostic information such as trouble codes, event codes and live data, and perform ECU coding, for various vehicle control systems, such as engine, transmission, ABS and more.
Add-on Functions
MaxiCOM MK906S Pro is a diagnostic scanner with various interfaces that can access to more Add-on like Inspection Camera, HDMI Projector, Phone, PC, USB Memory Stock, Headset, Oscilloscope, Extend SD Card etc.

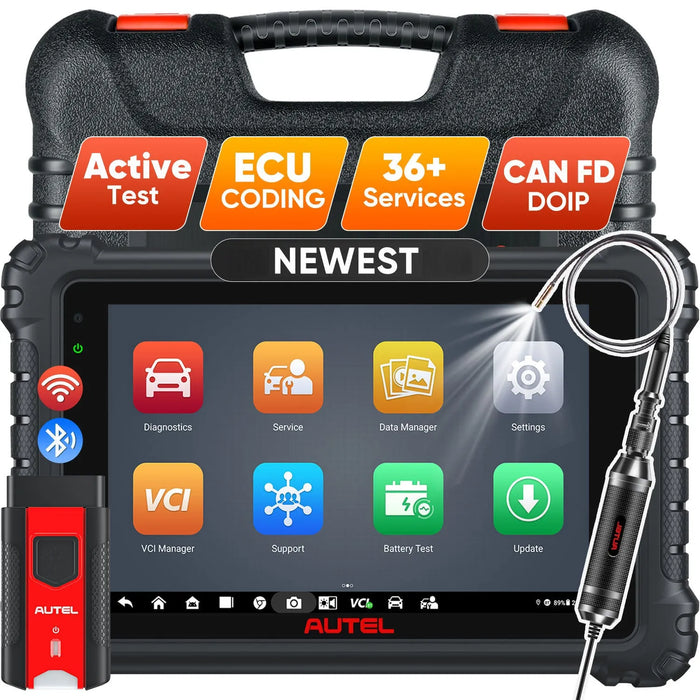

- MK906S Pro connects to a MV108 / MV105 inspection camera and turns into a video inspection scope, allowing you to examine difficult-to-reach areas normally hidden from sight. It is capable of recording digital still images and videos, which offers you an economical solution to inspect machinery, facilities, and infrastructure in a safe and quick way.
- MaxiCOM MK906S Pro works with Autel MP408 oscilloscopeproviding you an insight to the inner workings of a vehicle’s electronic circuits. Featuring the user-friendly UI design combined with the unrivalled hardware specs, is able to measure and test virtually all the electrical and electronic components and circuits in any modern vehicles.

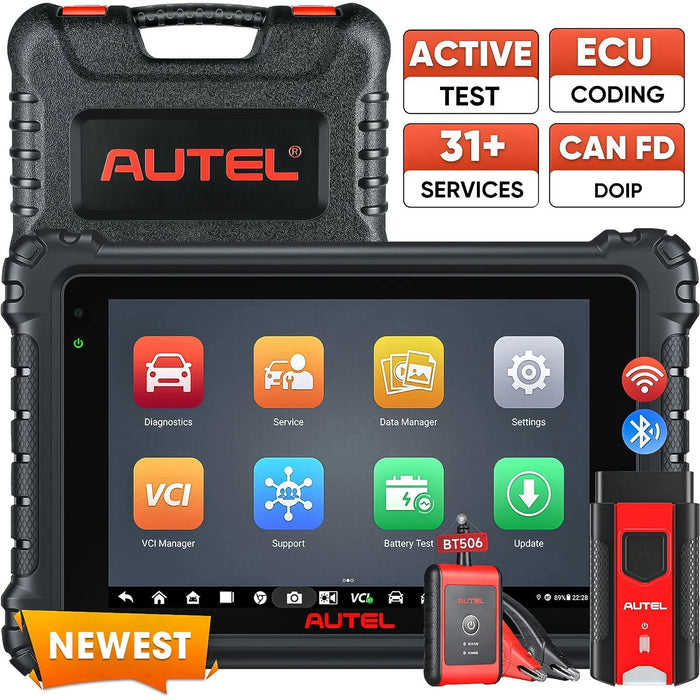

- Autel automotive tool MK906S Pro works with Battery Tester(BT506) to check 12V vehicle battery and view the health status of the vehicle's battery and electrical system.

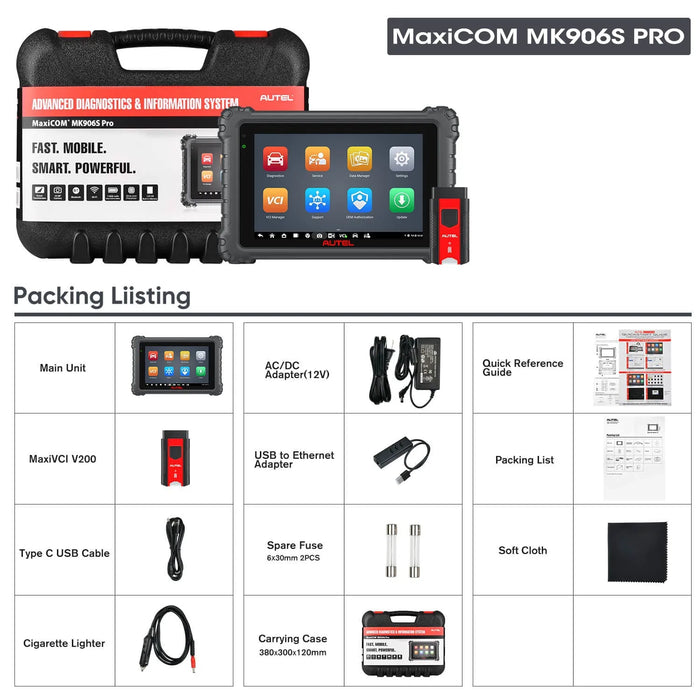

Device Parameters & Package
Autel MaxiCOM MK906S Pro Specification:
| Operating System: |
Android 10.0 |
| Processor: |
Octa-core processor (2.2 GHz Qual high, performance Kryo cores + 1.8 GHz Qual low, power Kryo cores)
|
| Memory: |
4G RAM/ 128GB ROM |
| Display: |
8.0" LED capacitive touch screen with 1920x1200 resolution |
| Connectivity: |
• Wi-Fi (802.11 b/g/n)USB: 2.0, Mini USB 2.0 Wireless BT V2.1+EDR Class1, HDMI 1.4a SD Card (support up to 32 GB) |
| Camera (rear): |
Front: 16 Megapixel
Rear: 16 Megapixel
|
| Sensors; |
Gravity Accelerometer, Ambient Light Sensor (ALS) |
| Audio Input/Output: |
• Microphone • Single Speaker • 3-Band 3.5 mm stereo/standard headset jack |
| Power and Battery: |
11 600 mAh 3.7 V lithium-polymer battery
Charging via 12 V AC/DC power supply |
| Input Voltage: |
12 V (9-35 V) |
| Power Consumption: |
5 W |
| Operating Temp.: |
-10 to 55°C (14 to 131°F) |
| Storage Temp.: |
-20 to 70°C (-4 to 158°F) |
| Dimensions (W x H x D): |
270.8 mm (10.0”) x 176.0 mm (6.9”) x 36.0 mm (1.4”) |
| Weight |
NW: 1.05 kg (2.3lb.) |
