Autel Official 12-Month Warranty
Autel MaxiSys MS906 Pro

2026 Autel MaxiSYS MS906 Pro

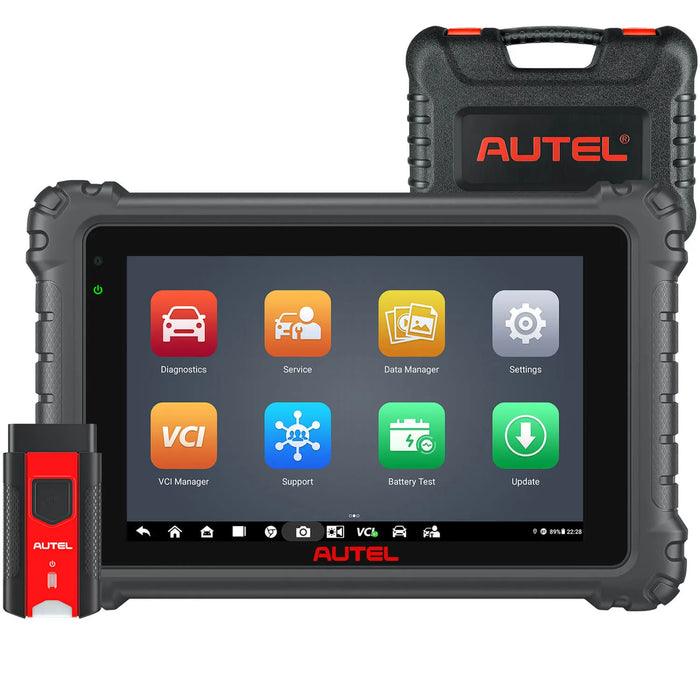

The Autel MaxiSYS MS906 Pro is a powerful 8-inch diagnostic tablet for U.S., Asian, and European vehicles from 1996 and newer. Equipped with an Octa-core processor, Android 10.0, and 128 GB memory, it performs full system scans, reads/erases codes, views freeze frame and live data.

It features bi-directional controls for active testing, ECU coding, and adaptations, plus customizable pre/post scans and 36+ common service functions. With expanded software and cloud-based data, it can work with Autel BT506 battery tester for complete battery, cold cranking, and generator diagnostics.

MS906 Pro ECU Coding

The Autel MS906 Pro is equipped with advanced online ECU Coding and adaptation functions, offering the same coding capabilities as the MK908 and MS908 models. Its ECU coding features enable you to:

1. Unlock Hidden Features:
   Refresh or modify vehicle software to unlock hidden functions—features disabled at the factory due to local regulations. Online coding also allows changing default settings and simulating high-end vehicle features to customize your vehicle. Such as: Auto Park function, tilting rear-view mirrors, one-button lift window, start and stop memory, cancel power-on rule statement, display digital speed, residual temperature control, adjust turn signal flashing times, single door opening function, automatic window closing function for VW, BMW, Audi, Skoda, etc.

2. ECU Replacement & Relearn

Featuring ECU/Module replacement functions, Maxisys MS906 Pro Bi-directional Scanner can help you initialize, match, relearn, or code the newly replaced ECU/module to get it back on track. Compatible with Asian cars like Honda, Nissan, Toyota, Hyundai, Kia, etc. Introduce the new ECU module replacement to the car system and make the cars running smoothly.

3. Programmable Module Installation(PMI)

Download old data from the existing module and then uploaded to the new module.

4. Customize Your Own Car

• After you change the bad component or certain parts, you need to use this function to make a new code and recognize the new modules.
• By changing the code with the ECU coding, it's easy to improve vehicle performance or stimulate high-end functions for the car.
• ECU Online Coding Compatible with Volkswagen, BMW, Porsche, etc. Obtain the online data from the server and no need to match ECU manually; Code your car fast and easily via Internet to solve your car's problems; Restore the vehicle functional status after replacing the on-board modules.

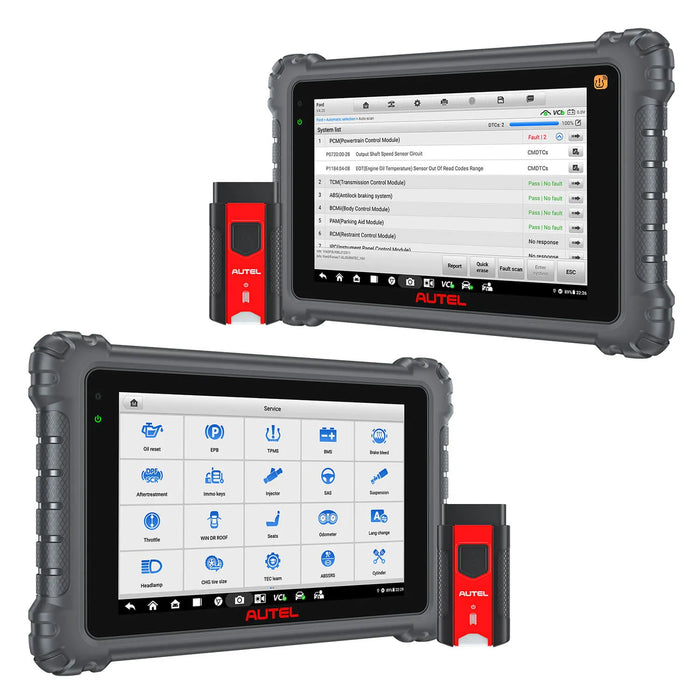

OE-Level All-System Scanner

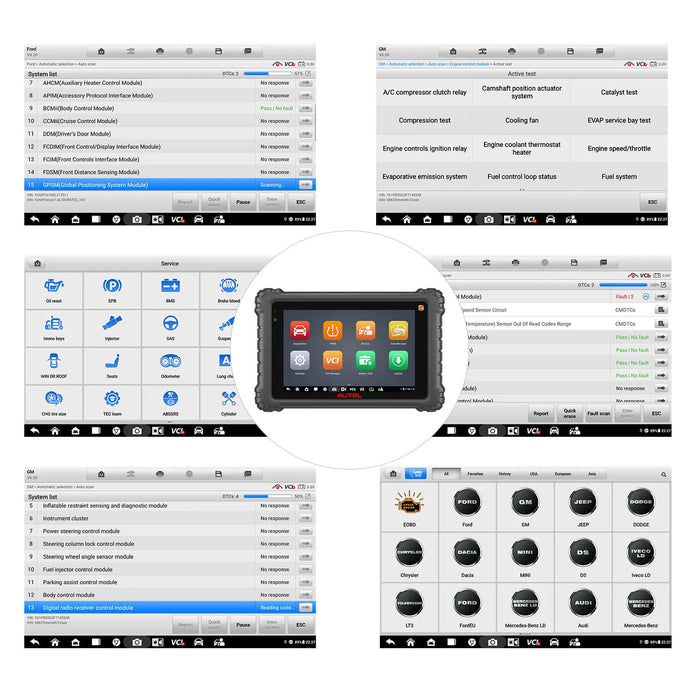

The Autel MS906 Pro is an upgrade over MS906BT/MK908, delivering OE-level diagnostics on 10,000+ U.S., Asian, and European vehicles, including 2025/2026 models. With the Auto Scan feature, it automatically scans all electronic modules, locates faults, and clears codes to turn off warning lights.

The MS906 Pro can read DTCs, display live data streams, and perform active tests across all available systems — just like factory-level equipment.

Examples:

Engines/ Auto Transmission/ Airbags/ Immobilizer/ABS/ Cruise Control/Instruments/ Self Leveling Suspension systems/Seats/ Doors/ Gateway/ Steering Angle/ Air Suspension/ Body Systems/ Electronic Parking Brake & Motor Assisted/ Power Steering/ Tyre Pressure / Rain Sensors / Stabilizer/ Intelligent Parking Assist/ Door Motors/ Audio Systems/ Air Conditioning/ Tiptronic/ Anti-Theft/ Soft Top/ Headlamp Leveling/ Automatic Clutch/ Headlights/Wash Wipe/ Cruise Control/ Multi Function Steering Wheel/ Aux Heating/ Clutch Electronics, etc.

Bi-Directional Diagnostic Scanner - MS906 Pro

The Autel MS906 Pro is a real bi-directional scanner with full bi-directional control and active test functions, enabling technicians to perform component tests by sending commands to vehicle systems or subsystems for fast troubleshooting.

Examples:

• Fuel Injector Balance, Injector Tests
• Cylinder Deactivation, A/C Compressor Clutch Relay On/Off
• Cycling ABS Pump Motor, EVAP Tests
• Switch on/off car wipers, Rolling up/down car windows/doors/sunroof
• Cooling fan motor command, Interior lighting test, High beam test

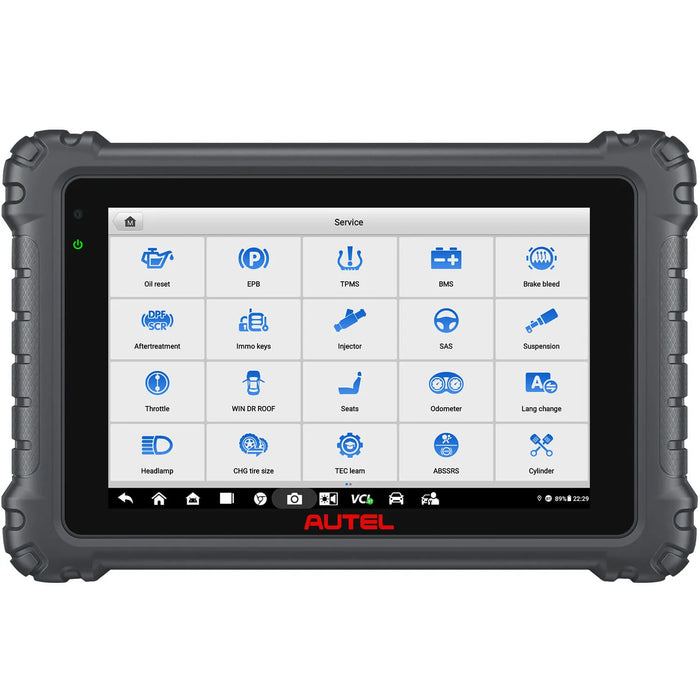

36+Maintenance Services

The Autel MS906 Pro offers 30+ maintenance functions to meet daily repair needs. Key features include:

• Oil Reset – Reset oil life after oil and filter replacement
• Injector Coding – Code new injector numbers after replacement
• Brake Reset – Activate/deactivate brake control, manage fluid, open/close pads
• SAS Reset – Calibrate steering angle sensor and clear stored values
• BMS Reset – Register new battery, evaluate charge state; supports deeper diagnostics with BT506
• ABS Bleeding – Bleed air from ABS system to restore brake performance
• Throttle Relearn – Reset ECU throttle values to default
• Key Coding – Add new keys, remove lost keys, help ECU recognize replacements
• DPF Regeneration – Clear particulate matter from DPF filter to maintain performance
• Gear Learning – Perform gear relearn after replacing ECU, crankshaft sensor, or flywheel
• More... – Covers multiple additional functions for advanced diagnostics

Note: Service functions vary by vehicle. Please send your VIN to verify compatibility before purchase.

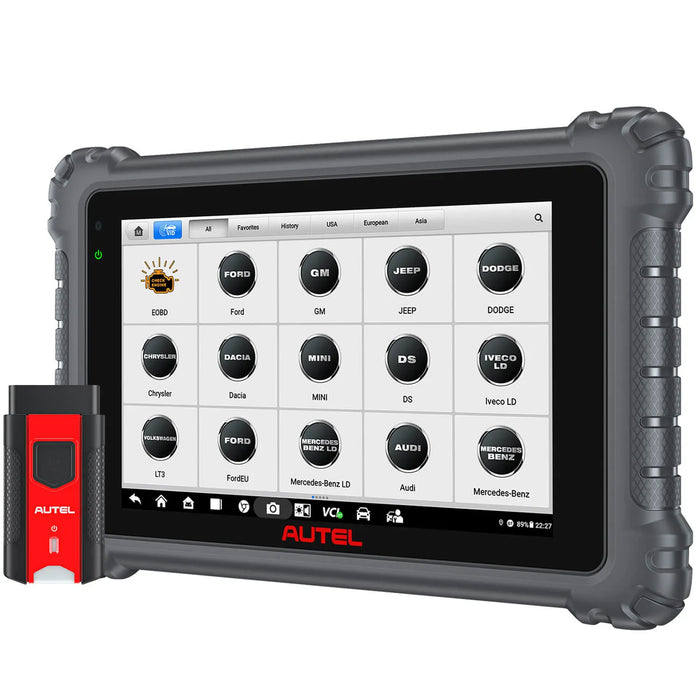

99% Car Coveraged

Aute scanner MS906 Pro supports OBD1 & OBD2 compliant vehicles, covering 150+brands, and 10,000+ Vehicles.

New Expanded Features

The Autel MS906 Pro is a next-gen 2026 diagnostic tool with expanded capabilities beyond MS906/MS906BT/MS908:

• Supports Autel BT506 for complete battery, cold cranking, and generator tests

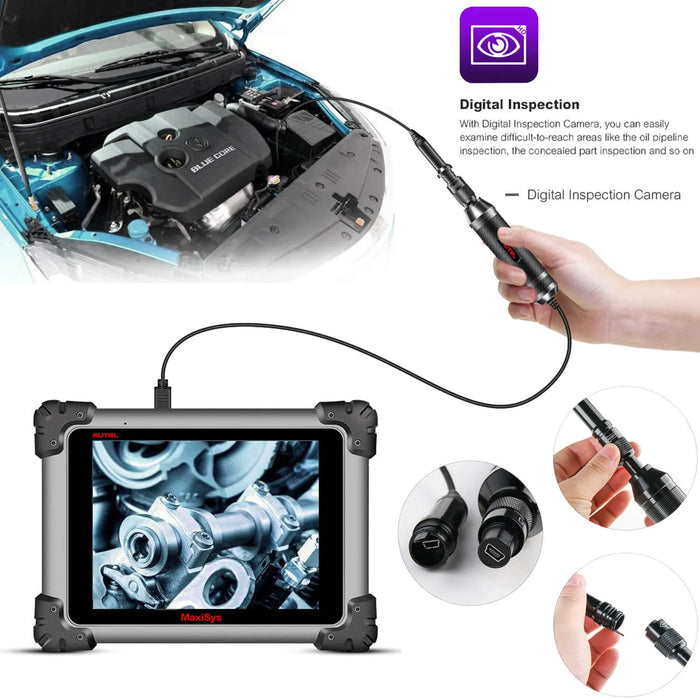

• Compatible with Autel MV108 Videoscope to provide you clear image, such as engine cylinders and other small part inspections, easy-to-see.

• Cloud-based report storage and data management

• VAG Guided Functions：Step-by-step operation guidance, easy to master usage for beginners. Compatible with VW/ Audi/ Skoda/ Seat, Bently cars etc.
• Wi-Fi Printing:  allows you to print reports directly from any page, no need to connect to PC.
• Pre & Post Scan:  Pre-scan report helps to expedite insurance carries approval of repair estimates, avoiding additional insurance authorizations. And post-scan report prove all DTCs on the Pre-Scan report are fixed. DATED scan report to ensure vehicles are repaired and safe for customers.
• FCA AutoAuth: There is no need to dismantle the FCA cars & diagnose with the 12+8 adapter. Just register an "AutoAuth" account on the device and you can pay tp diagnose the FCA vehicles after 2017.

• Remote Expert Service：Unlike other ancient model, Autel MS906 Pro features the latest Remote Expert Service, allowing you to get real-time support from professional technicians when you encounter repair issues.

5X Faster Diagnostic Speed

Autel 2026 newest scanner MaxiSys MS906 Pro has been upgraded to Android 10.0 OS, adopted Exynos octa-core processor with 4G RAM, 128GB for super-smooth operation. 8'' 1920*1200 touch screen, 16MP double cameras allow for ultra-clear and detailed testing results. 11600mAh battery supports 10 hours of continuous work.

Autel MS906 Pro Specs:

Autel MS906 Pro Package List:

• 1* Autel MS906 Pro Tablet
• 1* MaxiVCI V200
• 1* AC/DC Adapter (12V)
• 1* Type C USB Cable
• 1* Cigarette Lighter
• 2* Light Fuse (60x30mm)
• 1* USB to Ethernet Adapter
• 1* Strap
• 1* Quick Reference
• 1* Package List
• 1* Soft Cloth
• 1* Carrying Case (380x300x120mm)
