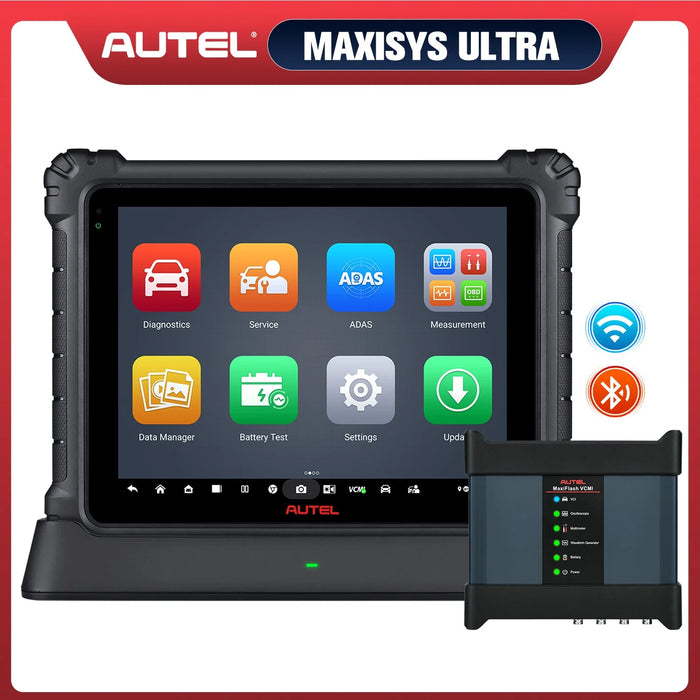

2026 Autel Maxisys Ultra Diagnostic Tablet

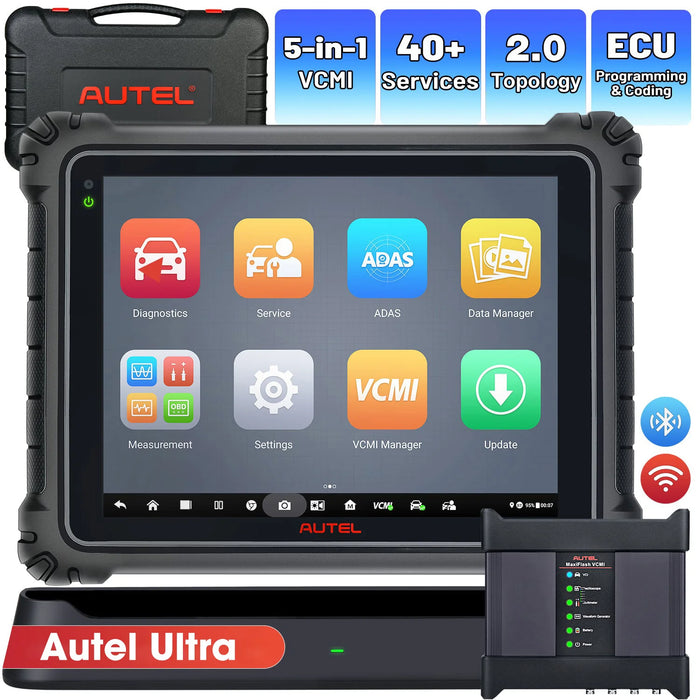

Autel MaxiSys Ultra Top Diagnostic Scanner

The Autel MaxiSys Ultra Car Diagnostic Scanner is the top business booster for USA Large Vehicle Repair Workshop, which is the best investment for a large workshop.

Combined with Topology Map 2.0, Advanced Programming & Coding, 5-in-1 VCMI(Valued $2000), D-PDU/SAE J2534/RP1210/DoIP/CAN FD protocols supported, NO IP Limitations(Can be used overseas), Full bidirectional, AutoScan 2.0(All system scan done in seconds), 40+ Hot services, 10+ High-end functions, top-level hardware configuration, compatible with Battery Test BT506 & MV108S, Upgradable to Ultra EV with EV Diag Box, and 99.99% vehicle coverage, this MaxiSys Ultra scanner is really a good choice for large auto workshops.

Top Reasons to Choose Autel Maxisys Ultra

• Enhanced Topology Map 2.0: Quickly to find the faulty systems at a glance within a communications network for BMW, Ford, Audi, Chrysler, Honda, Toyota, etc.
• Advanced ECU Programming & Coding: Autel Ultra Automotive Scanner enables you Program New blank ECU Modules for BMW & Benz, and reprogramming the adaptive data to ensure optimal performance after repair or replacement for BMW, Porsche, VW, Audi, etc.
• 40+ Hot Services: Autel MS Ultra has been designed with 40+ commonly-used service functions, surpassing many other Autel Maxisys Scanners.
• D-PDU/SAE J2534/RP1210/DoIP/CAN FD protocols: With so many other protocols are supported, wider vehicle coverage for 99.99% makes in the market.
• 5-in-1 VCMI: Integrates VCI Manager, oscilloscope, waveform generator, multimeter, and CAN BUS tester, providing you fast & stable connection with OE software for further programming & coding.
• VAG Guided Function: Autel Scanner Maxisys Ultra provides OE-level guidance and allows you just follow the screen instructions step by step to complete some complex operations.
• Refresh Hidden Features: Maxisys Ultra scanner can activate the hidden features already programmed to the car computers to get high-end functions and improve car performance.
• Bi-directional Control: Full control over various car components, parts to perform active tests like EVAP test, cooling fan, injector test, cycling test, ABS motor pump test, A/C Clutch Switch On/Off etc.
• Support 10000+ Vehicles: Maxisys Ultra supports among Europe, Asia, USA, to 2026 new cars.
• More Extensive Functions: Support Tesla & McLaren Diagnosis, NO IP Limitation, All System Diagnostics, Wifi printing, Pre & Post Scan, Auto Scan 2.0, Remote Expert, Built-in AutoAuth Service, Access 2018+ FCA SGW Cars.
• Free Software Update - You will be provided a 1 Year Free software update online for the Autel MS Ultra.

Autel Maxisys MS Ultra Topology Module Map 2.0

Upgraded to Topology Map 2.0 with Wider Coverage support 50+ Makes, This Autel Maxisys MS Ultra offers you a more visually representation of relationships elements within a communications network for you. With this function, you can:

• Instantaneously get a glance of crucial information such as the number of faults in Each ECU.
• Directly access the current status of each module, including the presence and number of DTCs.
• Filter out healthy and faulty systems with distinct colors for easy analysis.
• Systematically present the communication structure between each module.
• Support over 50 leading car brands, including but not limited to BMW, Ford, Audi, Chrysler, Nissan, Honda, Toyota, Lexus, Land Rover, Jaguar, Benz, VW and More

Note: The function is not universally compatible with all vehicles. Please send us your VIN# to help you check compatibility first.

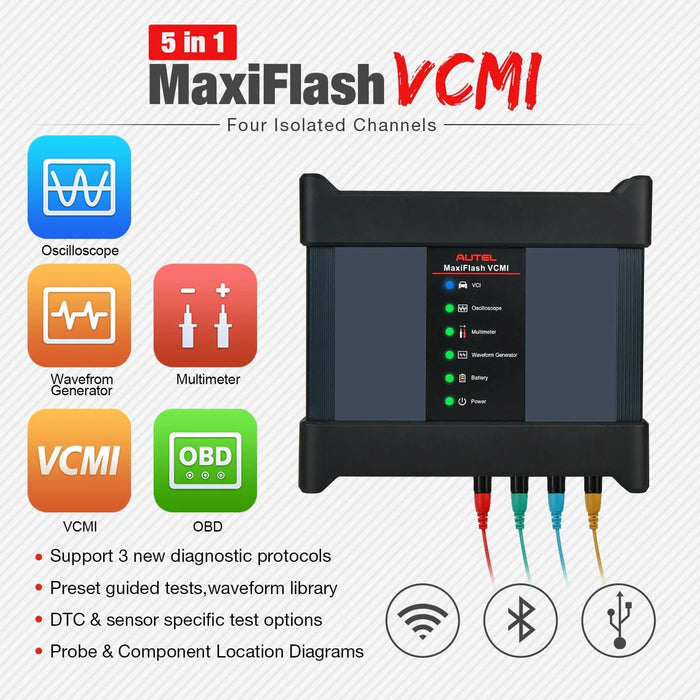

Autel MaxiFlash 5-in-1 VCMI

Autel Ultra comes with VCMI, which integrated VCMI Manager, Oscilloscope, Multimeter, Waveform Generator, and CAN BUS Check, making you work more efficient, more powerful!

• Oscilloscope: Show how a signal varies with time in a graphical way.
• Waveform Generator: Simulate the signals of automotive electronic components.
• CAN BUS Check: Check whether the control units in vehicle's electronic control systems work properly or not.
• Multimeter: Test voltage, current, resistance, frequency, diode, duty cycle, etc.
• VCMI Manager: Pair the tablet with the VCMI device and to check the communication status.

More Advanced than J2534: With the 3 diagnostic protocols (D-PDU/SAE J2534/RP1210), Ultra can work with more OEM diagnostic tools and diagnose & program more vehicles than J2534 programming tools.

Powerful ECU Programming & ECU Coding

Advanced ECU Programming for Benz & BMW

Specially for Benz:

• Post-Programming Processing Functions
• Programming Restoration
• Synchronization Coding Function
• Transmission Calibration Data Backup & Restoration
• Implicit Coding: Current Value & Target Value
• SCN Coding Based on Big Data

Specially for BMW:

• Entertainment System HTTP Programming
• High Voltage System Programming
• Personalized Data Backup
• Programming History
• Automatic Calculation Programming

ECU Coding for Exploring More Possibility on your Vehicle

Change replaced model and code into vehicle ECU modules via modify custom parameter value.

• Online ECU Coding
• Component Matching
• Refresh Hidden Functions
• Disable Annoying Features
• Programmed Module Installation
• Enhance Vehicle Performance

Note: ECU Programming just for Specific BENz and BMW, and ECU Coding for Benz, BMW, Audi, Porsche, VW etc.

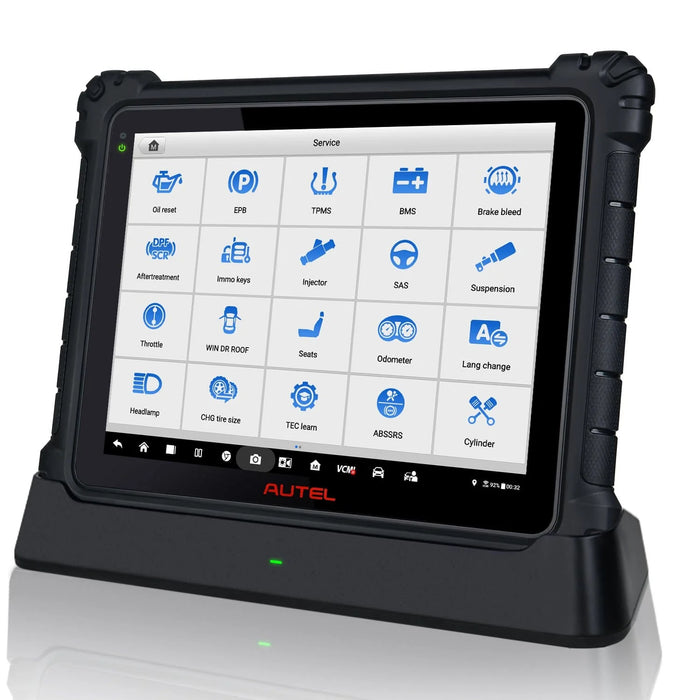

40+ Hot Maintenance Function

• Commonly Used Reset Functions for Fast Maintenance or Repairs:

Oil Reset, EPB, BMS, ABS Bleed, TPMS, Airbag Reset, DPF Reg, IMMO Service, Injector Coding, SAS Calibration, Suspension Calibration, Throttle Adaption, ABS/SRS, Gear Learning, Sunroof Initialization, Seats Calibration, Headlight Matching, A/F Setting, WIN DR Roof, Odometer, CHG Tire Size, Cylinder, Turbocharging, Limit, Trans Adaption.

• Advanced Functions for Different Vehicle Models:

Neutral Gear Position Learning, Torque Sensor Adjustment, Signal Check, Yaw Rate Sensor (YRS) Learn, Clutch Pedal Position Learn, Cylinder Power Balance, Component Matching, Stop/Start Reset, Transport Mode, Auto-Door Lock, etc.

10+ Highly Advanced Features

Bi-Directional Control (Active Test)

The bi-directional control would send the commands to the ECU or individual systems and track down the problems in subsystems such as headlamps, windows, sunroof, multimedia, etc.

VAG Guided Function 2.0

Step-by-step special functions guidance not only for most VAG vehicles(Audi/VW/Skoda/Bentley/Seat/VW_CV/Man_LD),but for Benz/BMW/Mini(First Release), and it performs special functions without the security access code, which simplify workflows and improve efficiency.

New Energy Vehicle Support - Tesla & McLaren

Unlike traditional diagnostic scanners, Autel MaxiSys Ultra supports new energy vehicle - Tesla and McLaren for diagnostic.

Pre & Post Scan - Report is customized with shop and vehicle info

• Pre-scan Report: To help to expedite insurance carries approval of repair estimates, avoiding additional insurance authorizations.
• Post-scan Report: To prove all DTCs on the Pre-Scan report are fixed. DATED scan report to ensure vehicles are repaired and safe for customers.

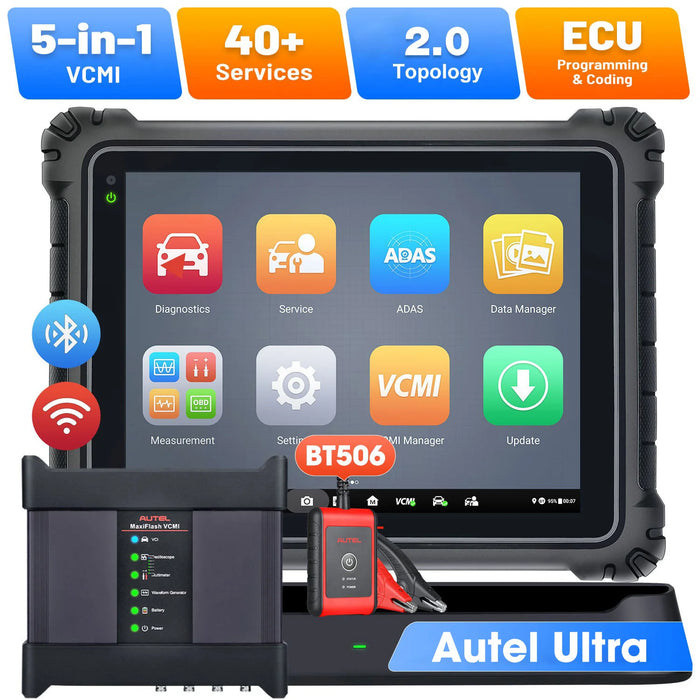

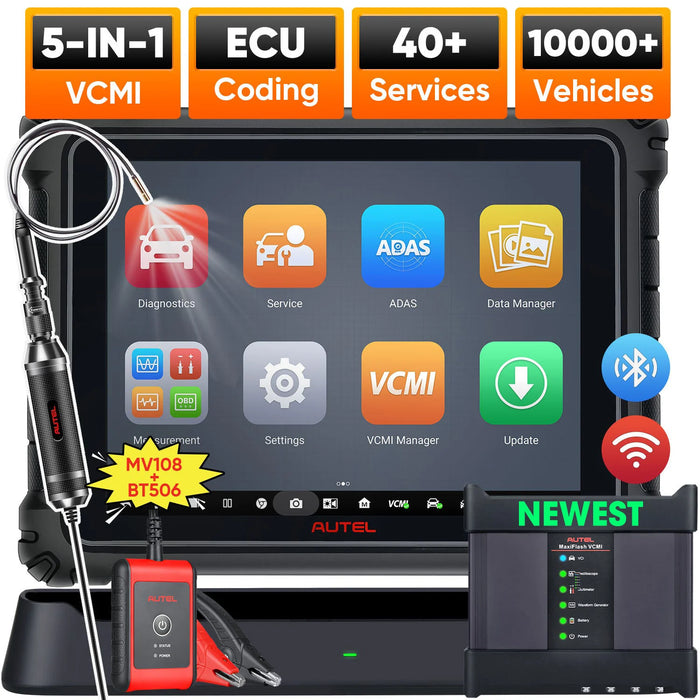

Compatible with BT506/MV108S/MSOAK(NOT INCLUDED)

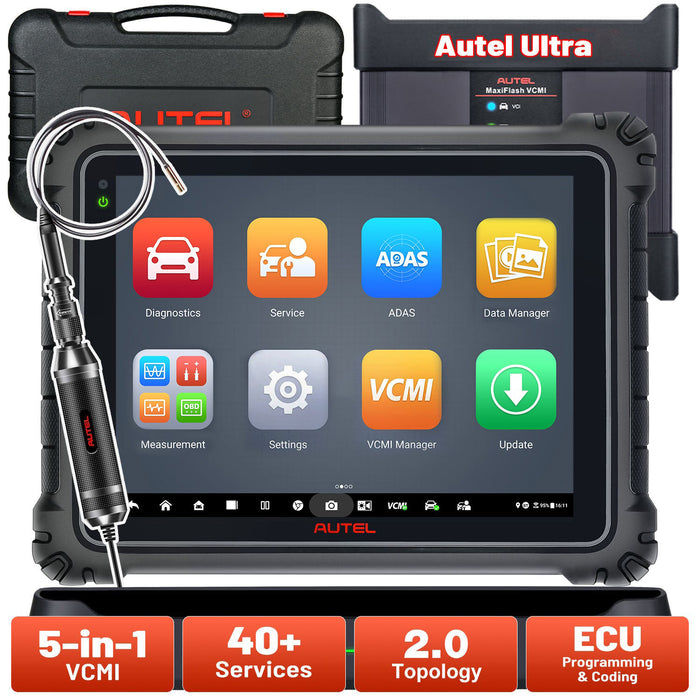

Autel Ultra is exclusively equipped with battery test ability(Work with BT506), compatible with the MaxiVideo MV108S inspection camera for up-close visual inspections, and compatible with Autel MSOAK to retrieve precise AC/DC and ignition waveforms data to optimize your diagnostic efficiency.

FCA AutoAuth

There is no need to dismantle the FCA cars & diagnose with the 12+8 adapter. Just register an "AutoAuth" account on the device and you can pay tp diagnose the FCA vehicles after 2017.

Autel MaxiSys Ultra with Wide Coverage

Autel Maxisys Ultra has the most extensive vehicle coverage, which is the most suitable scanner for a Big Workshop.

• Passenger / Light Duty / Some Medium Duty / Super Cars / New Energy Vehicles
• Works on 99.99% Vehicles After 2000
• 15000+ Vehicles Covered, Including Tesla & MacLaren
• Support D-PDU / J2534 / RP1210 / CAN FD / DoIP Protocols

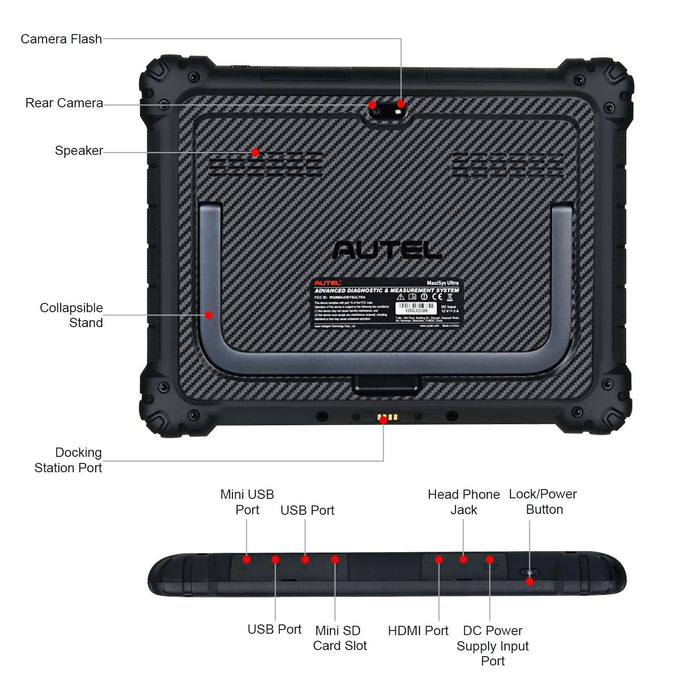

Autel Maxisys Ultra Specification:

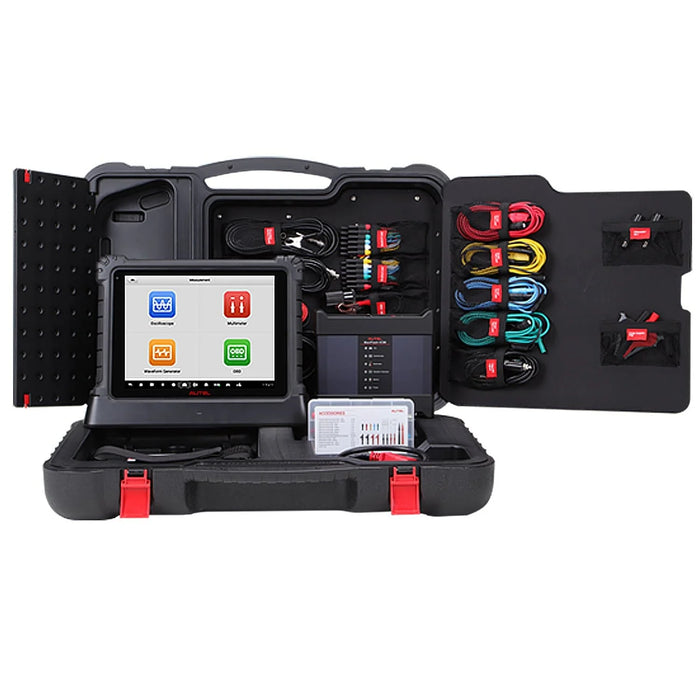

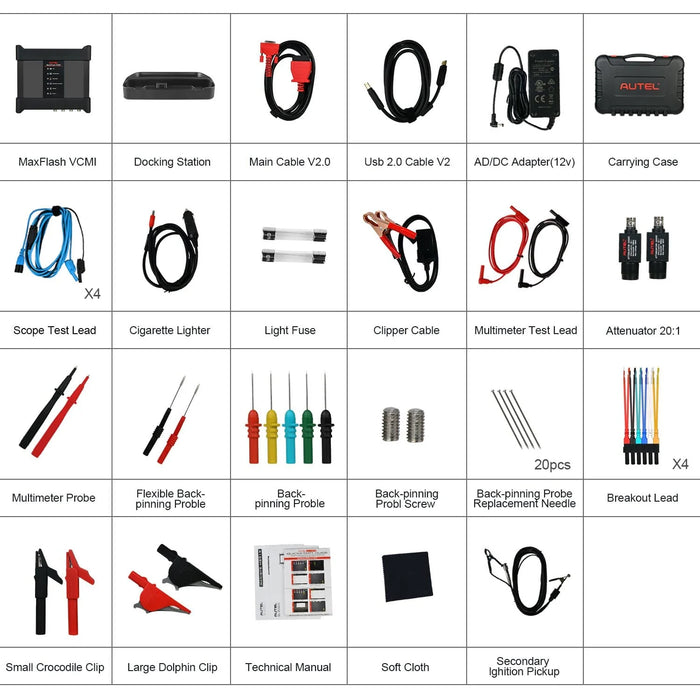

Autel MaxiSYS Ultra Package Content:

• Maxisys Ultra Main Unit
• MaxiFlash VCMI
• Main Cable V2.0
• USB 2.0 Cable V2
• AC/DC Adapter(12V)
• Cigarette Lighter
• Light Fuse 6x30mm 2PCS
• Clipper Cable
• Scope Test Lead 4PCS
• Multimeter Test Lead 2PCS
• Secondary Ignition Pickup 2PCS
• Attenuator 20:1 2PCS
• Breakout Lead 4x6PCS
• Multimeter Probe 1x2PCS
• Flexible Back-pinning Probe 2x2PCS
• Back-pinning Probe - Red/Green/Blue/Yellow/Black 1x5PCS
• Back-pinning Probe Screw 2PCS
• Back-pinning Probe Replacement Needle 20PCS
• Small Crocodile Clip 2x2PCS
• Large Dolphin Clip 1x2PCS
• Quick Reference Guide
• Packing List
• Soft Cloth
• Tool Box 177 x 102.5 x 23.5 mm
• Carrying Case 687 x 170 x 470 mm
