【2-Year Free Update】Autel MaxiCOM Ultra Lite S All System Diagnostic Scanner with Topology Mapping and J2534 ECU Programming Tool

items available In Stock | 2 reviews
from Original price
Original price
AU $4,149.00
from AU $4,149.00
Current price AU $4,149.00
Model: Ultra Lite S

Delivered by Wed, Jun 26 - Fri, Jun 28 Ship from Sydney, Australia

Service

Fast, Free Shipping & No Extra Tax

30-Day Return or Replacement

12-Month Free Warranty

Lifetime Customer Support

Pay with Ease
Trusted Delivery
free shipping by USPS, UPS or FedEx
  • Description
  • Comparison
  • Accessories
  • Downloads
  • Shipping
  • Certificate
    • Description

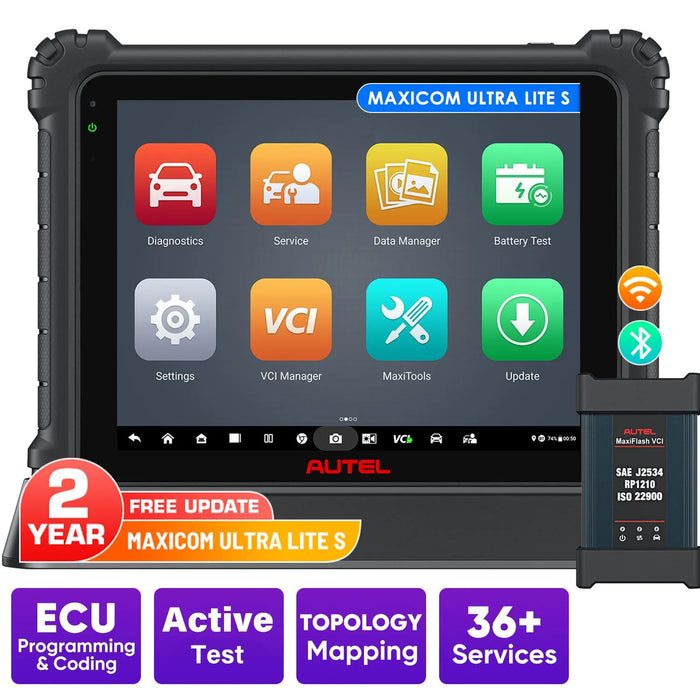

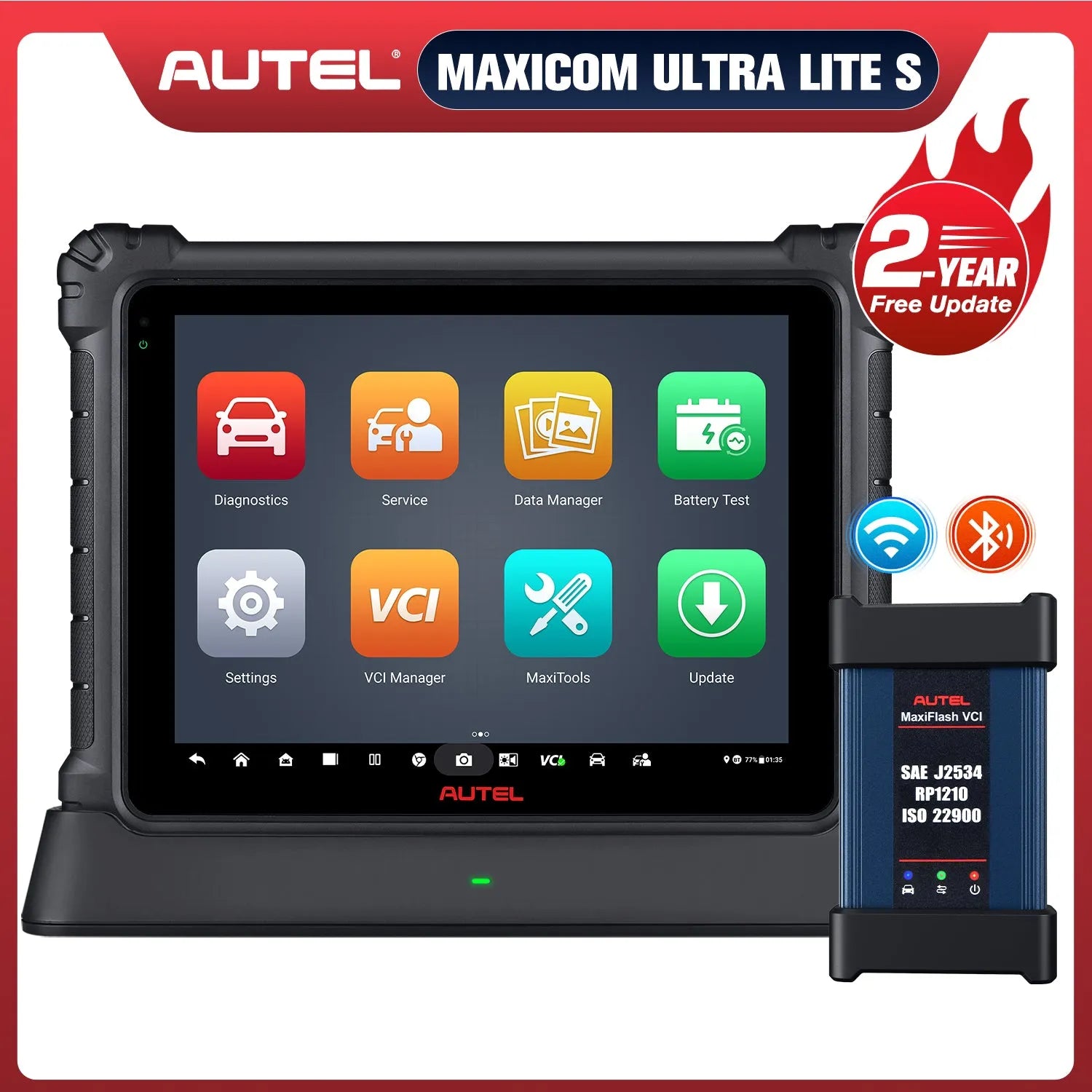

  • Autel MaxiCOM Ultra Lite S-2 Years Free Update

    The Autel MaxiCOM Ultra Lite S is a 12.9-inch all system diagnostic scan tablet, it provides full functions and online repair information needed when diagnosing vehicles, identifying faults, and researching repairs.

    Like OEM/ Snap-on scanners, Ultra Lite S works as AI expert to swiftly locate issues with Motor TruSpeed Repair. Through TSB, DTC Analysis, Repair Assist, Repair Tips, Relevant Cases…, it guides you to troubleshoot faults without the need for a dealer-only tool. Topology Mapping gives mechanics a bird’s eye view of the networks on the vehicle’s platform, displaying all DTCs and module status systematically & intuitively.

    Combined with the enhanced Autel MaxiFlash J2534 ECU programming device, the Ultra Lite S diagnostic tool enables maximize technicians ECU coding and programming ability.

    Autel Ultra Lite S (Ultra Lite) Top 8 Highlights:

    1. NO IP Limitation, Multi-language: English, French, German, Dutch, Polish, Swedish, Korean, Japanese, Russian, Italian

    2. ScanVIN: Barcode or Text Recognition with Camera

    3. Upgraded Version of Maxisys MS919, MS909, and Maxisys Elite.

    4. 2-Year Free Update Online and One Year Warranty.

    5. Split-Screen Multi-Application Navigation with Super Fast Running Speed, Greatly Improving Your Work Efficiency.

    6. OE-Level All Systems Diagnostics: Scan and Diagnose all systems and subsystems

    7. Powerful Hardware:  Android 7.0 OS, Sam-sung Octa-core processor, 4GB RAM & 256GB memory, 12.9''' 2732x2048 TFT-LCD touch screen, 5M front & 16M rear cameras, 18000mAh battery

    8. Topology Module Mapping: Provides a color-coded topology display for all vehicle systems' relationship and their status on one page and you can better analyze the system faults.


    MaxiCOM Ultra Lite S Features:

    OBD2 Integillent Diagnostic Scanner with ECU Programming and Bi-directional Control

    Software

    • Comprehensive diagnostics on 1996 and newer U.S., Asian and European vehicles
    • Includes advanced MaxiFlash J2534 VCI extra support latest DoIP, D-PDU, CAN FD, RP1210 protocols.
    • AutoScan: Scan all available systems, Read/Erase Codes, View Freeze Frame, and Live Data
    • Comprehensive Integillent OBDII diagnostics & Repair Assist, Bi-directional control, and advanced ECU coding and programming
    • AutoVIN/Scan VIN for rapid vehicle identification
    • Extensive Service Menu: Quick access to 36+ most common maintenance services
    • VAG Guided Functions and Built-in Demo App

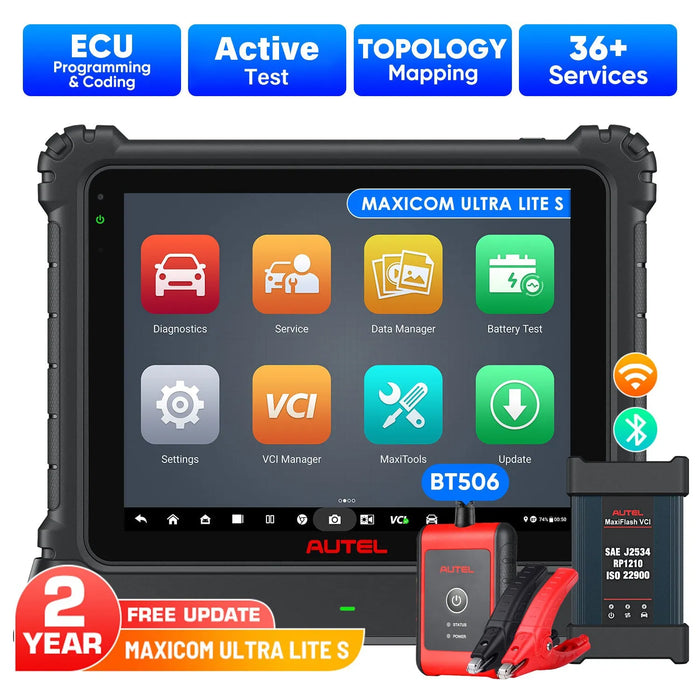

    • Perform Battery and Charging System analysis with additional purchase MaxiBAS BT506 tester.
    • Cloud-based Reports, Data Management and Remote Expert

    Hardware

    • 12.9-inch, 2732 x 2048 resolution, Samsung Exynos8895V Octa-core processor with 256GB storage and Android 7.0 operating system.

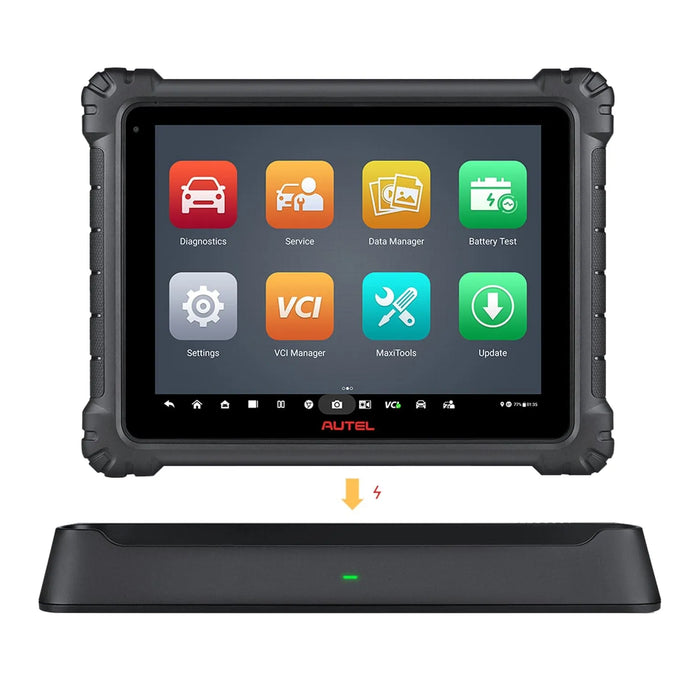

    • Long-lasting 18000mAh rechargeable battery, Convenient Docking Station, 16 MP rear camera and 5 MP front camera
    • 2 Year Free Software Updates - After you register and log in, you can enjoy a free software upgrade for two years. After two years, if you do not choose to continue to purchase the upgrade service, it will not affect the normal use of the device.

    Compare the Ultra Series

    Autel MaxiCOM Ultra Lite S diagnostic scanner has total same hardware specification and software functions as Maxisys Ultra, the main difference between both is Ultra lite S comes with MaxiFlash J2534 VCI while the Maxisys Ultra scanner is equipped with MaxiFLASH VCMI 5-in-1 VCI.

    Hardware


    MSULTRA ULTRA Lite S MS919 MS909
    Vehicle Connection MaxiFlash VCMI
    Including Latest Protocols
    MaxiFlash VCI
    Including Latest Protocols
    MaxiFlash VCMI
    Including Latest Protocols
    MaxiFlash VCI
    Including Latest Protocols
    Color Screen 12.9-Inch Touchscreen
    2732 x 2048 DPI / TFT-LCD Corelle Glass
    12.9-Inch Touchscreen
    2732 x 2048 DPI / TFT-LCD Corelle Glass
    9.7-Inch Touchscreen
    1536 X 2048 DPI / TFT-LCD Asahi GLASS
    9.7-Inch Touchscreen
    1536 X 2048 DPI / TFT-LCD Asahi Glass
    Processor 2.3GHz + 1.7GHz
    OCTA-CORE
    2.3GHz + 1.7GHz
    OCTA-CORE
    2.3GHz + 1.7GHz
    OCTA-CORE
    2.3GHz + 1.7GHz
    OCTA-CORE
    Memory / RAM 256GB SSD / 4GB RAM 256GB SSD / 4GB RAM 128GB SSD / 4GB RAM 128GB SSD / 4GB RAM
    Battery 18,000 mAh 18,000 mAh 15,000 mAh 15,000 mAh
    Camera 16MP Rear / 5MP Front 16MP Rear / 5MP Front 16MP Rear / 5MP Front 16MP Rear / 5MP Front
    Docking Station Included Included

    Software


    MSULTRA ULTRA Lite S MS919 MS909
    Operating System Android 7.0 Android 7.0 Android 7.0 Android 7.0
    Software Updates 1 Year Free 2 Year Free 1 Year Free 1 Year Free
    Support Language English Only Multiple Language 3 Languages(EN, ES, PT) 3 Languages(EN, ES, PT)
    Automatic Detection ScanVIN / Auto-VIN / Auto-Scan ScanVIN / Auto-VIN / Auto-Scan ScanVIN / Auto-VIN / Auto-Scan ScanVIN / Auto-VIN / Auto-Scan
    Split Screen Display View Multiple Functions at Once View Multiple Functions at Once
    Advanced VCMI
    5-IN-1 Device
    VCI, Oscilloscope, Multimeter, Waveform Generator, CAN BUS Check VCI, Oscilloscope, Multimeter, Waveform Generator, CAN BUS Check
    Topology Module Mapping Color Code All System Status Screen
    On Supported Vehicles
    Color Code All System Status Screen
    On Supported Vehicles
    Color Code All System Status Screen
    On Supported Vehicles
    Color Code All System Status Screen
    On Supported Vehicles

    Features


    MSULTRA ULTRA Lite S MS919 MS909
    Vehicle Diagnostics Passenger / Light Duty
    Some Medium Duty
    Passenger / Light Duty
    Some Medium Duty
    Passenger / Light Duty
    Some Medium Duty
    Passenger / Light Duty
    Some Medium Duty
    Basic & Special Functions Domestic, Asian & European
    1996 and Newer
    Domestic, Asian & European
    1996 and Newer
    Domestic, Asian & European
    1996 and Newer
    Domestic, Asian & European
    1996 and Newer
    OBDII Test Modes All 10 Test Modes
    Live & Freeze Frame / Enhanced Mode 6
    All 10 Test Modes
    Live & Freeze Frame / Enhanced Mode 6
    All 10 Test Modes
    Live & Freeze Frame / Enhanced Mode 6
    All 10 Test Modes
    Live & Freeze Frame / Enhanced Mode 6
    Service Resets 36+ Services Features 36+ Services Features 36+ Services Features 36+ Services Features
    Diesel PM Reset Diesel Emissions
    Light & Medium Duty Vehicles
    Reset Diesel Emissions
    Light & Medium Duty Vehicles
    Reset Diesel Emissions
    Light & Medium Duty Vehicles
    Reset Diesel Emissions
    Light & Medium Duty Vehicles
    System Diagnostics Access All Modules
    In All Systems
    Access All Modules
    In All Systems
    Access All Modules
    In All Systems
    Access All Modules
    In All Systems
    Component Activations Bi-directional Control Bi-directional Control Bi-directional Control Bi-directional Control
    Enhanced Functions Advanced Coding + Adaptations Advanced Coding + Adaptations Advanced Coding + Adaptations Advanced Coding + Adaptations

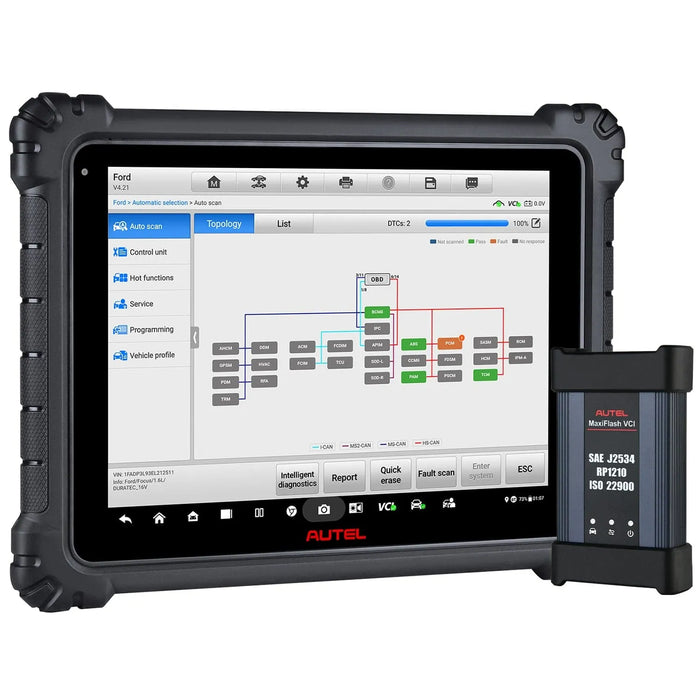

    Topology Module Mapping

    Single Page Color Coded Module Status Mapping

    Autel Ultra Lite S automotive scanner can generate a topology map intuitively presenting all module diagnostic results(DTCs status and numbers) in different colors and make you know the communication structure between the modules. This function offers technicians great convenience to locate faults and causes!

    MaxiCOM Ultra Lite S Scanner provide user advanced ECU Programming and Coding

    Advanced ECU Programming & Coding - Maximum of Your Car

    Autel Ultra Lite S automotive scan tool with ECU programming or ECU remapping function that allow mechanics and technicians to quickly and efficiently reprogram the ECU to customer or garage specifications, customize car parameters, and replace existing software/firmware in the ECUs to improve the vehicle’s overall performance.

    ECU Online Programming: For Benz / BMW ONLY

    ECU Offline Programming: For Ford, Mazda, Jaguar, Vaxhall, Opel ONLY

    ECU Coding + Adaptations:With enhanced ECU coding function, the Ultra lite S diagnostic tool allow you to refresh the hidden features, customize the OE settings and enhance the vehicle performance, fuel efficiency, and reduce power loss.

    ECU Coding: Benz, BMW, Audi, Porsche, VW, Nissan, Nissan-GTR, Infiniti, Hyundai

    Hidden function renewal: For BMW, VW, Audi, Skoda

    Autel MaxiCOM Ultra Lite S Diagnostic Tool ECU Programming Functions
    Autel MaxiCOM Ultra Lite S Scanner for ECU Codoing and Adaptations

    Full Bi-directional Control/ Component Test

    With the feature of bi-directional control (active test), the scanner Autel Ultra Lite S can send commands to the ECUs to activate the a-ctuators to identify the faulty issue by monitoring the operation of a-ctuators.

    Autel MaxiCOM Ultra Lite S Automotive OBD2 Bi-directional Control/ Component Test Diagnostic Scanner

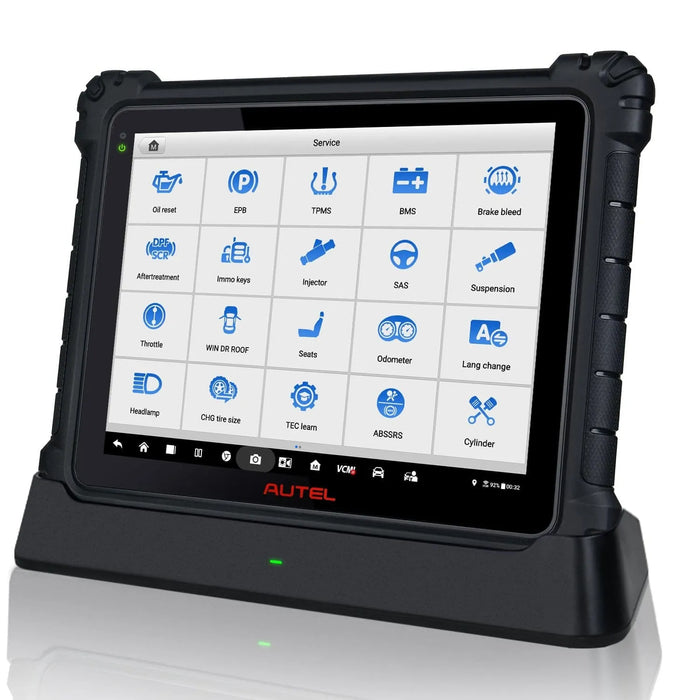

    36+ Maintenance Functions

    As the Autel TOP scan tool, MaxiCOM Ultra Lite S comes with 36+ service functions and can be updated constantly for wider vehicle coverage, more functions, and functional optimization, to meets all your needs for various scheduled repairs or maintenance.

    The maintenance functions are as following: Oil Reset, EPB, TPMS, BMS, Brake Bleed, DPF SCR Aftertreatment, IMMO keys, Injector, SAS, Suspension, Throttle, WIN DR ROOF, Seats, Odometer, Lang change, Headlamp, CHG tire size, TEC learn, ABSSRS, Cylinder, VGT learn, Speed & PTO, Clutch, Trans adaptation, Airbag reset, and A/F Setting.

    Autel MaxiCOM Ultra Lite S Diagnostic Scanner 36+ Maintence Services

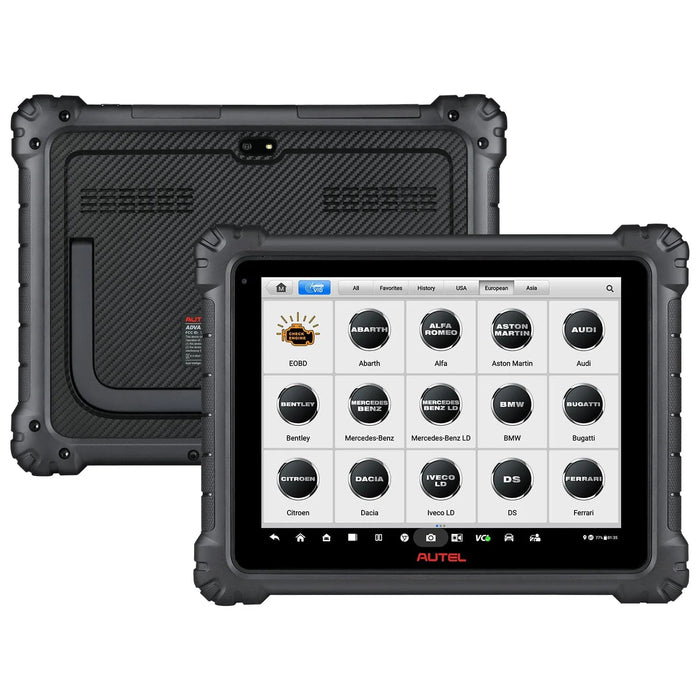

    Worldwide and Newer Vehicle Coverage

    The MaxiCOM Ultra Lite S scanner provides the absolute full range of diagnostics (including read/erase codes, view freeze frame and live data) for any vehicle manufactured in 1996 or later. It doesn’t matter if your garage is geared toward domestic, Asian, and European cars—this diagnostic tool’s got you covered. Supported vehicle more than 80 manufacturers, 140 brands.

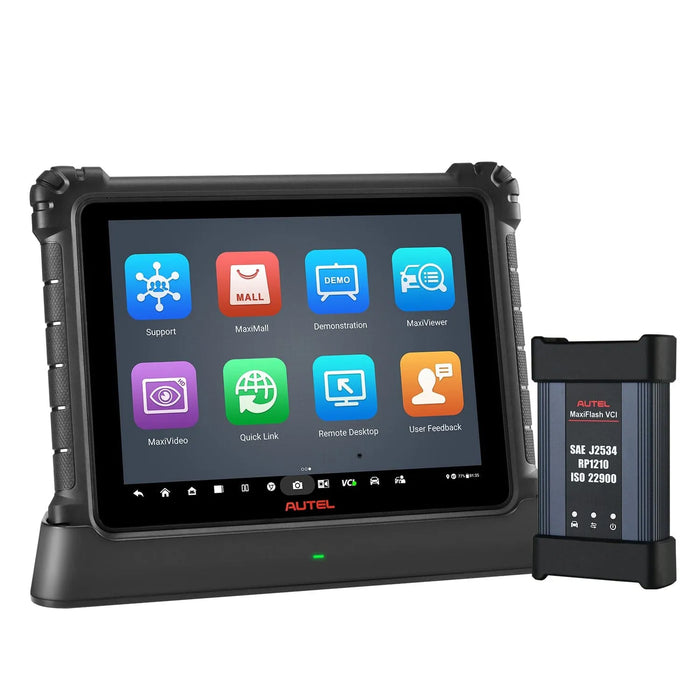

    Besides, Autel Ultra Lite S scanner supplied with MaxiFlash VCI with Enhanced Protocol Compatibility, which supports D-PDU, RP1210, CANFD. J2534 and DoIP protocols.

    D-PDU / J2534 / RP1210 Diagnostic Protocols Cover More Vehicle Types

    DoIP / CAN FD Protocols for High-Speed CAN Cover New Vehicle Models

    Autel Ultra Lite S Automotive Scanner with MaxiFlash J2534 VCI for cover more newer vehicle
    Autel Maxicom Ultra Lite S Car Diagnostic Tool Support 1996 and Newer Vehicle

    More New Added Function

    1. Remote Expert:

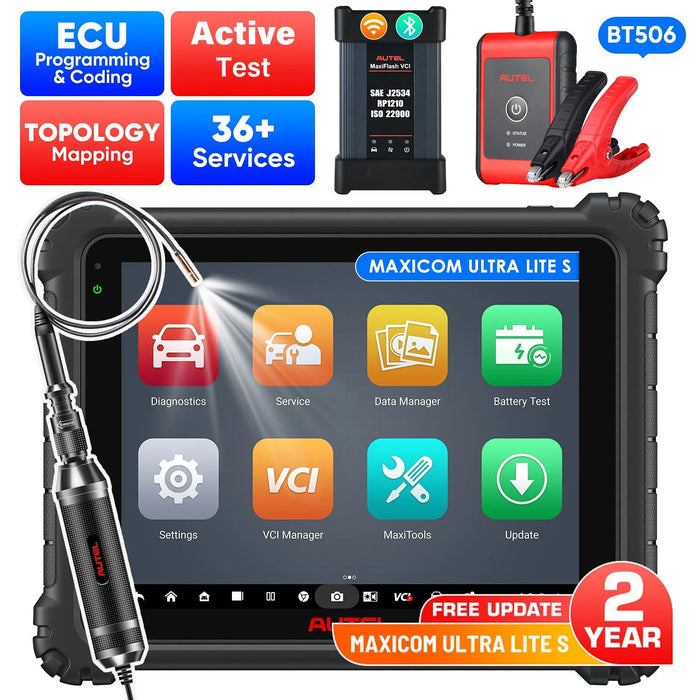

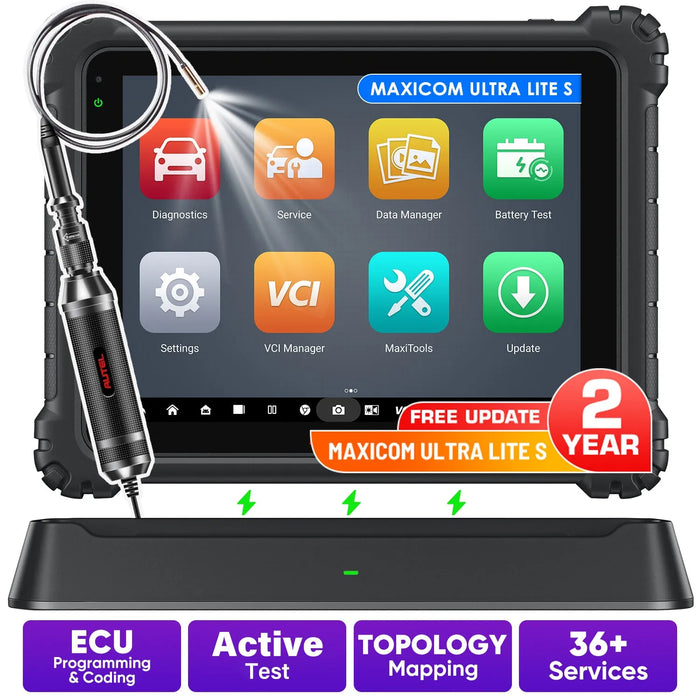

    2. Expanded Function, Like add on MV108 videoscope, or Autel battery tester BT506

    3. WIFI Printing

    MaxiCOM Ultra Lite S Specification:

    Operating System: Android 7.0
    Processor: Samsung Exynos8895V octa-core Processor (2.3GHz Quad-core Mongoose + 1.7GHz Quad-core A53)
    Memory: 4GB RAM & 256GB On-board Memory
    Display: 12.9 inch TFT-LCD with 2732 x 2048 resolution & capacitive touch screen
    Connectivity: •WiFix2 (802.11 a/b/g/n/ac 2x2 MIMO),BT v.2.1 + EDR,GPS
    USB 2.0 (Two USB HOST Type A, one USB mini device),HDMI 2.0,SD Card (Support up to 256GB)
    Camera: Rear: 16 Megapixel, Autofocus with Flashlight
    Front: 5 Megapixel
    Sensors; Gravity Accelerometer, Ambient Light Sensor (ALS)
    Audio Input/Output: •Microphone,Dual Speakers,3-Band 3.5 mm stereo/standard headset jack
    Power and Battery: 18000mAh 3.8 V lithium-polymer battery
    Charging via 12 V AC/DC power supply with the temperature between 0°C and 45°C
    Input Voltage: 12V/3A Adapter
    Operating Temp.: 0 to 50°C (32 to 122°F)
    Storage Temp.: -20 to 60°C (-4 to 140°F)
    Dimensions (W x H x D): 366.5 mm (14.43") x 280.9 mm (11.06") x 34 mm (1.34")
    Weight 2.18kg (4.81 lb.)
    Protocols DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can (GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20),
    TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS),
    Ford UBP, Nissan DDL UART with Clock , BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)
    autel ultra lite s specifications

    Autel MaxiCOM Ultra Lite S Package Content:

    • 1x MaxiCOM Ultra Lite S Main Unit
    • 1x MaxiFlash VCI
    • 1x Docking Station
    • 1x Main Cable V2.0
    • 1x USB 2.0 Cable V2
    • 1x AC/DC Adapter(12V)
    • 1x Auxiliary Power Outlet Adapter
    • 2x Spare Fuse 6x30mm
    • 1x Clamp Cable
    • 1x USB to Enthernet Adapter
    • 1x Quick Reference Guide
    • 1x Packing List
    • 1x Soft Cloth
    • 1x Carrying Case 650 x 185 x 430 mm

    • Comparison
  • Model MS908S Pro MK908P Elite II Ultra Lite S Ultra
    Hardware
    CPU Exynox 5260 Exynox 5260 Exynos 8895 Exynos 8895 Exynos 8895
    RAM 2GB 2GB 4GB 4GB 4GB
    ROM 64GB 64GB 128GB 256GB 256GB
    Battery Capacity 11000 mAh 15000 mAh 15400 mAh 18000 mAh 18000 mAh
    Android Version Android 4.4.2 Android 4.4.2 Android 7.0 Android 7.0 Android 7.0
    Screen Size 9.7 inch 10.1 inch 9.7 inch 12.9 inch 12.9 inch
    Screen Resolution 1024*768 1920*1200 1536*2048 2732*2048 2732*2048
    Camera Rear 8.0 Megapixel Rear 8.0 Megapixel Rear 16.0 Megapixel
    Front 5.0 Megapixel
    Rear 16.0 Megapixel
    Front 5.0 Megapixel
    Rear 16.0 Megapixel
    Front 5.0 Megapixel
    VCI MaxiFlash Elite MaxiFlash Elite MaxiFlash Elite MaxiFlash VCI MaxiFlash VCMI
    Software
    Basic Diagnostic Function
    Service
    Special Functions
    Bi-Directional Control(Active Test)
    Online ECU Programming √(Benz, BMW) √(Benz, BMW) √(Benz, BMW) √(Benz, BMW) √(Benz, BMW)
    Online ECU Coding √(Benz, BMW, Audi, Porsche, VW) √(Benz, BMW, Audi, Porsche, VW) √(Benz, BMW, Audi, Porsche, VW) √(Benz, BMW, Audi, Porsche, VW) √(Benz, BMW, Audi, Porsche, VW)
    VW, Audi, Skoda Brush Hidden √(Need to purchase OTG conversion cable and F chassis special cable √(Need to purchase OTG conversion cable and F chassis special cable
    VW, Audi, Skoda, Seat, Bently, Man LD Guide function
    McLaren, Tesla diagnostics /
    Extended function
    Oscilloscope function (requires MP408)
    Endoscope function (requires MV105/MV108) /
    Battery Test /
    Remote Expert /
    Flagship Product Features
    Intelligent diagnostics (TSB technical bulletins, DTC guidance, fault prioritization, maintenance videos, etc.) / / / / /
    Diagnostic System Topology / / /
    Diagnostic standard D-PDU/RP1210 / / /
    Bus protocol DoIP/CAN FD / / /
    New Features
    Language Only English Multi-Language Multi-Language Multi-Language Only English
    Autel Cloud Service
    Wifi Printer / /

    • Accessories
  • Autel MaxiCOM Ultra Lite S Intellgent Diagnostic Scanner Full Package List
    • Downloads
  • Name

    Download

    Autel MaxiCOM Ultra Lite S Quick Start Guide


    • Shipping
  • Free Worldwide Shipping

    shipping policy

    Where is my order shipped from?

    We provide worldwide free shipping! And all orders will be shipped from the warehouse nearest to you and carried by DHL, FedEx, UPS, USPS, DPD, or Royal Mail according your address. Following is the location where our warehouse located at and estimate develiry date for reference.

    Your Address Shipping Location Delivery Estimated
    Australia Sydney, AU 5- 7 Days
    United States CA, US NJ, US 3-5 Days
    Canada BC, CA 3-5 Days
    Europe Germany 5-7 Days
    United Kingdom Leicestershire, UK 5-7 Days
    Other Countries HongKong 7-15 Days

    Order Processing Time

    All our order are processed and shipped out within 24 hours (excluding weekends and holidays).

    After the order is shipped out and received by the carrier, we will update you by email with a Track-and-Trace code with which you can follow your package and see the remaining shipping time.

    Please allow 24-48 hours for the tracking information to update.

    Shipping Address Change

    If you would like to change the shipping address for your order, please contact us by email with the new shipping address. Once the order is shipped, we can not alter the shipping address anymore.

    International Shipping Duties & Taxes

    - For international order. If the items don't ship from your local warehouse in your country/ region, you, the customer, will be responsible for the import duty, but please don't worry, We will decrease the declared value to reduce your import tax.

    Returns, Refunds, and Exchanges

    We provide a 30-Day Returns Service after delivery, If you are not satisfied with the item you bought or change your mind, please contact us for a return shipping address and ship all the items back to us for a refund in their original package.

    For more details of the return policy, please visit our Return Policy

    • Certificate
  • Autel Authorized Dealer

    OBDPRICE is Autel Authorized Exclusive Online Dealer. Products Created by Autel ® Innovation & Quality You Can Trust.

    autel scanner UK authorized dealer
