Autel MaxiCOM MK908 II

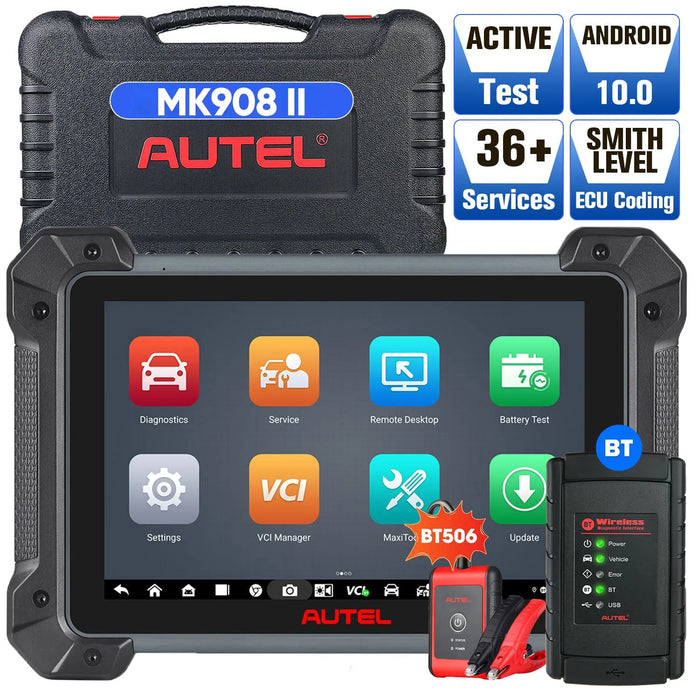

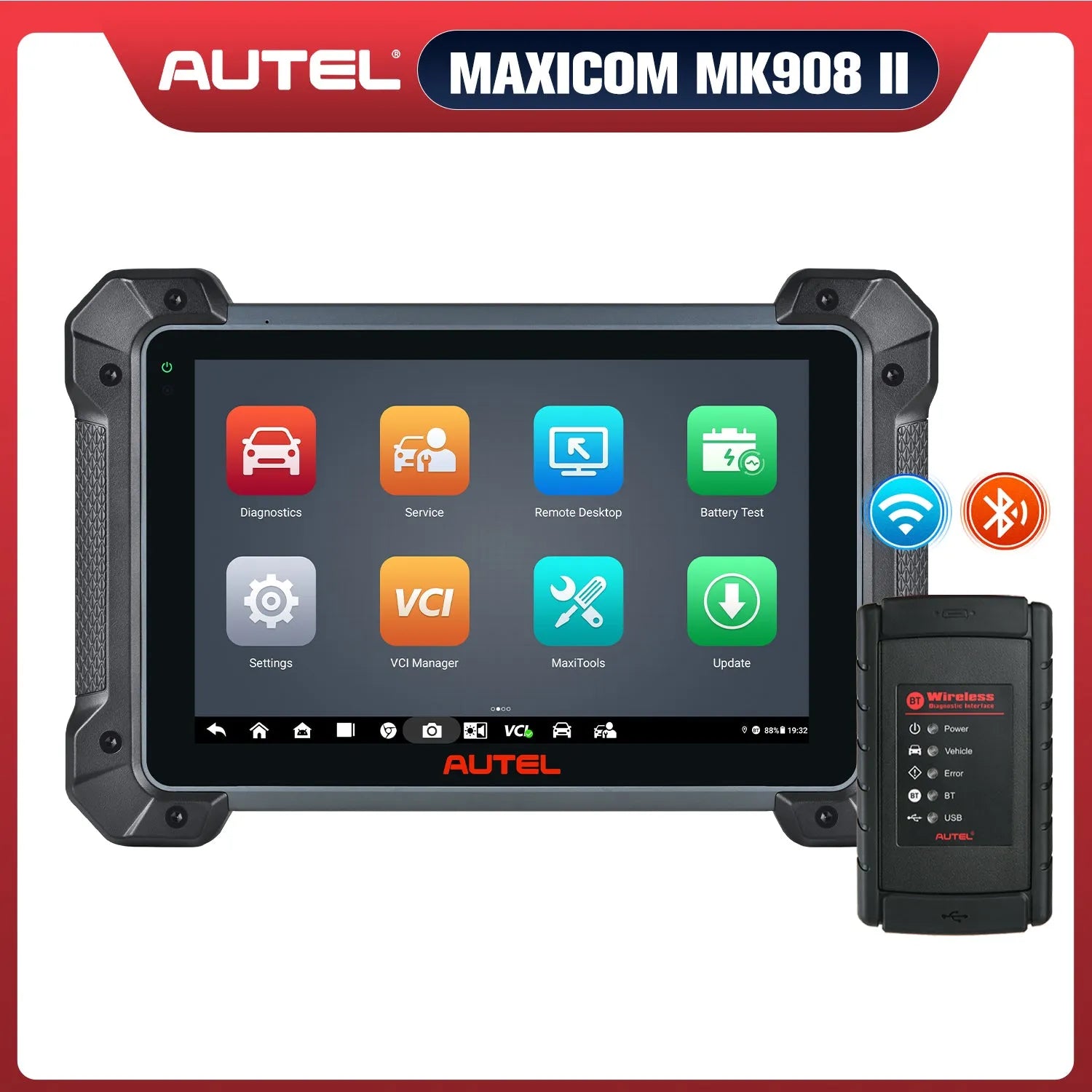

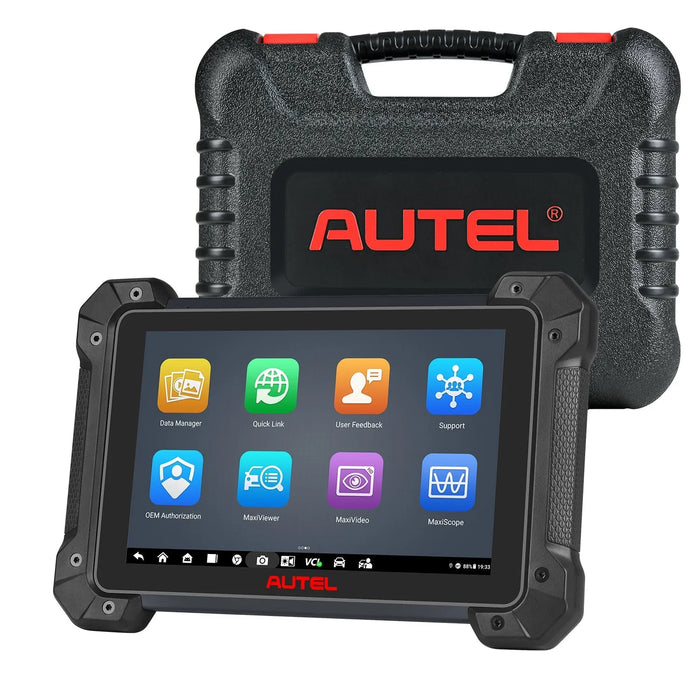

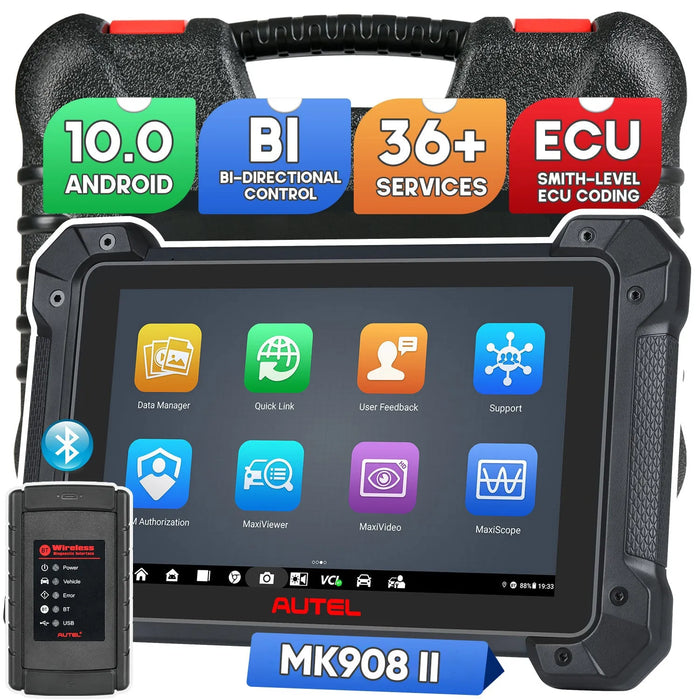

Autel MaxiCOM MK908 II Diagnostic Tool

As an advanced version of MS908, Autel MaxiCom MK908 II Bluetooth Auto Diagnostic Tool is Autel’s latest and most sophisticated automotive OBDII scanner.

Autel MK908 II is equipped with the hardware including the powerful Qualcomm 660 Octa-core processor, 4GB RAM 128GB Memory, it’s fast to boot-up and multitasking. Combined with the best possible coverage of OE-Level Diagnosis, various most commonly used service functions and special functions, advanced ECU Coding, full bi-directional control, active tests and Key Fob Programming. Autel MK908 II Wireless Automotive Scan Tool is the ultimate scan tool for technicians, mechanics and DIYers.

Advanced ECU Coding & Adaptation

The Autel MK908 II brings dealer-level capabilities to your garage, allowing you to unlock hidden functions, customize vehicle settings, optimize performance, and restore full functionality after repairs or part replacements.

• Unlock Hidden Functions: Activate features like Auto Park, tilting mirrors, one-touch windows, digital speed display, residual temperature control, and more for VW, BMW, Audi, Skoda, etc.
• ECU/Module Replacement & PMI: Initialize, match, relearn, and transfer data from old to new modules, ensuring smooth operation for Asian brands like Honda, Toyota, Nissan, Hyundai, and Kia.
• Online ECU Coding: Access manufacturer-specific codes, enable or disable vehicle features, and code new or upgraded components easily via the internet without manual matching.
• Performance & Personalization: Optimize engine parameters, enhance fuel efficiency, and activate high-end functions to tailor your car’s performance and comfort.

Bi-Directional Control & Active Test

Autel MaxiCOM MK908 II allows you to perform various bi-directional tests to check the operating conditions of both the Anti-lock Braking System and the Supplemental Restraint System, such as Automated Bleeding, Pump Motor Test and checking Module information, etc. And it enables bi-directional control of the ECM so that the MK908II is able to transmit control commands to operate the vehicle systems. This function is useful in determining whether the ECM responds to command well.

• Fuel Injector Balance, Injector Tests
• Cylinder Deactivation, A/C Compressor Clutch Relay On/Off
• Cycling ABS Pump Motor, EVAP Tests
• Switch on/off car wipers, Rolling up/down car windows/doors/sunroof
• Cooling fan motor command, Interior lighting test, High beam test

All Systems OE-Level Diagnosis

Autel MK908 II gain complete access to every on-board system to identify hidden issues in modules such as PCM, ECM, EPS, PDM, BCM, TPM, SCCM, RADIO, and more. The Autel MaxiCOM MK908 II can read and clear codes across all systems and subsystems, providing a clear view of multiple sensors in various formats. It also allows you to retrieve ECU information, monitor live data, and perform active tests.

• Read DTCs: Access all on-board systems to read and analyze diagnostic trouble codes (DTCs) in detail.
• Clear DTCs: After maintenance or component replacement, clear stored DTCs in the ECU and turn off warning lights on the dashboard.
• ECU Information: Retrieve comprehensive ECU data for detailed insights into vehicle modules.
• Live Data Stream: Monitor real-time data from multiple systems, providing a reliable reference to accurately diagnose specific issues.

36+ Special Reset Services

Autel MK908 II integrates over 36 essential maintenance functions, covering almost every routine service your vehicle might need. From brake bleeding, oil reset, and steering angle calibration to TPMS reset, DPF regeneration, and injector coding, these services help you perform professional-level maintenance with ease. Designed to save time, reduce costs, and keep your car running at peak performance, the MK908 II ensures 99% of your vehicle’s maintenance requirements are met efficiently.

• Injector Coding--- Code new injector numbers to replace the previous one when fitting the new injectors or after the replacement is completed;
• Brake Reset--- Deactivate and activate the brake control system, assist with brake fluid control, open and close brake pads, etc.;
• GEAR Learn--- Perform gear learning for the car when the engine ECU, the crankshaft position sensor, or the crankshaft flywheel is replaced.
• Key Coding--- Help ECU to recognize the new keys when you need to add new keys, and delete the lost keys;
• Oil Reset--- Reset the oil life systems every time the oil and oil filter are changed;
• SAS Reset--- Perform steering angle sensor calibration and clear records;
• BMS Reset--- Evaluate the battery charge state, register the battery replacement, etc.; More completed battery and starter-related detail working with BT506;
• ABS Bleeding--- When the ABS contains air, the ABS bleeding function must be performed to bleed the brake system to restore ABS brake sensitivity;
• Relearn Throttle--- Initialize the throttle so that the “learned” values stored on ECU are returned to the default state;
• DPF REG--- Clear PM (Particulate Matter) from the DPF filter through continuous combustion oxidation mode to stabilize the filter performance;

Note: Services and Reset functions are not universal to all the cars, please check compatibility with your VIN before you order.

Autel MK908 II Add-On Functions:

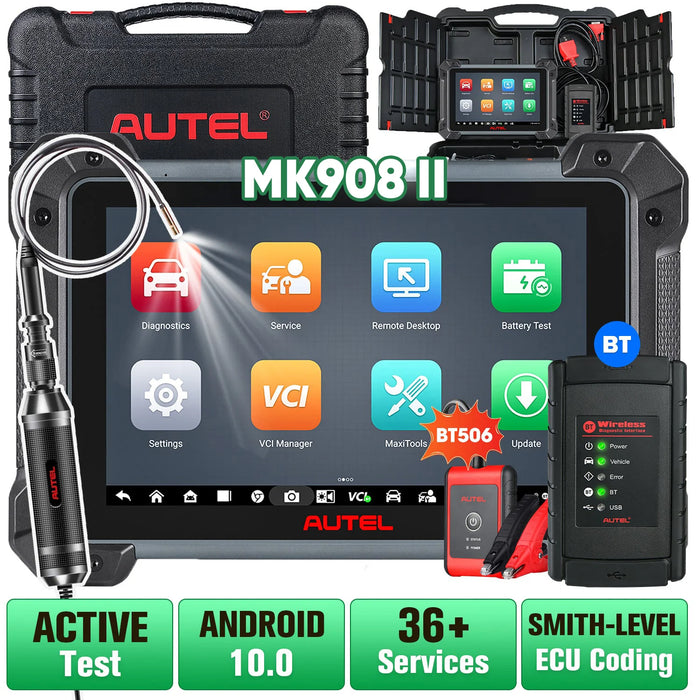

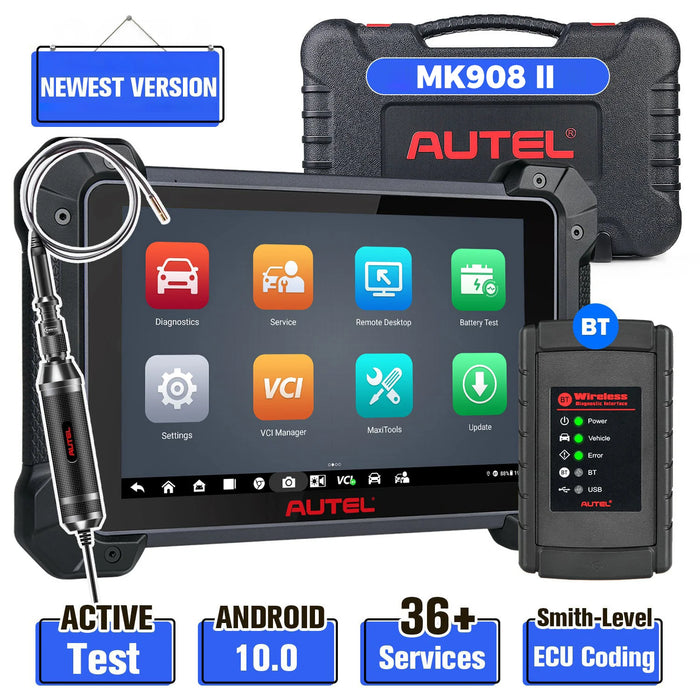

Extendable Feature: MK908 II can be expanded the diagnostic capabilities by working with BT506, MV108S to go deeper into the unseen details for locating the fault easily and accurately, or by working with Maxitpms TS501 for diagnosing comprehensive TPMS problems.

Autel MK908 II MaxiFix & Data Manager

The MK908 II MaxiFix application launches the on-line troubleshooter database, which not only provides you virtually all common diagnostic trouble code (DTC) database for most vehicles, but also serves as a forum allowing you to network with other MaxiCOM users, and gives you access to a vast database of repair and diagnostic tips along with proven filed fixes.

The Data Manager application is used to store, print, and review the saved files for future reviews.

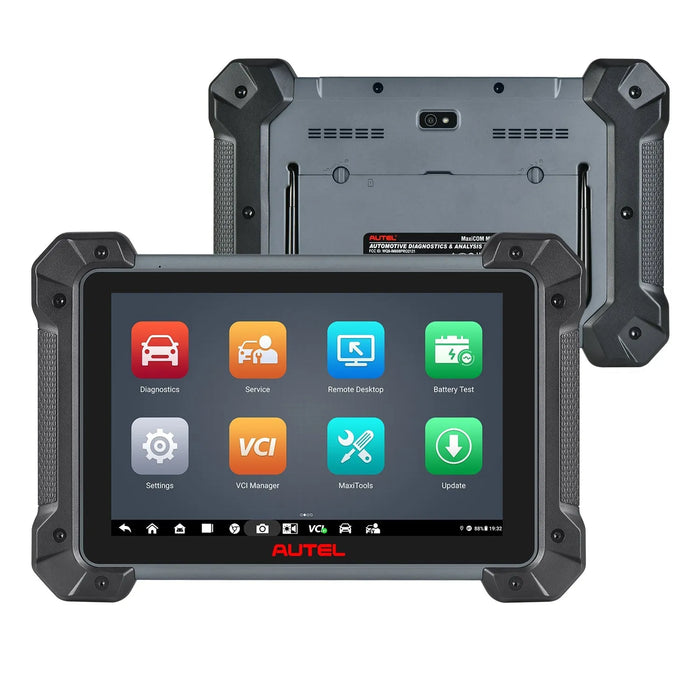

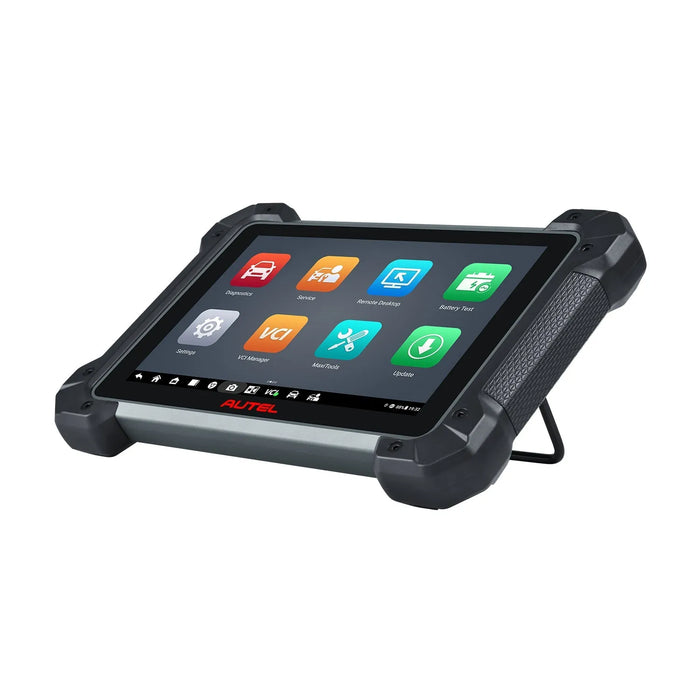

Autel MaxiCOM MK908 II Specification:

• Operating System: Android™ 10.0
• Processor: Qualcomm 660 Octa-core Processor (2.2GHz Quad-core A73+1.8GHz Quad-core A53)
• Memory: 4GB RAM & 128GB On-board Memory
• Display: 10.1-inch LED screen with 1920x1200 resolutions
• Connectivity: Wi-Fi (802.11 a/b/g/n/ac); USB 2.0 (2 USB TYPE-A ports and a Mini USB port); BT V5.0 + BR/EDR; SD Card (Support up to 64GB); HDMI
• Camera (rear): 16 Megapixel, AF with Flashlight
• Sensors: Gravity Accelerometer, Ambient Light Sensor (ALS)
• Input Voltage: 12V (9-24V)
• Power Consumption: 6.5 W
• Operating Temp.: 0 to 50°C (32 to 122°F)
• Storage Temp.: -20 to 60°C (-4 to 140°F)
• Housing: Strong plastic housing with protective rubber boot
• Protocols: ISO 9142-2, ISO 14230-2, ISO 15765-4, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, CAN ISO 11898, Highspeed, Middlespeed, Lowspeed and Singlewire CAN, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP 2.0, TP 1.6, SAE J1939, SAE J1708, Fault-Tolerant CAN

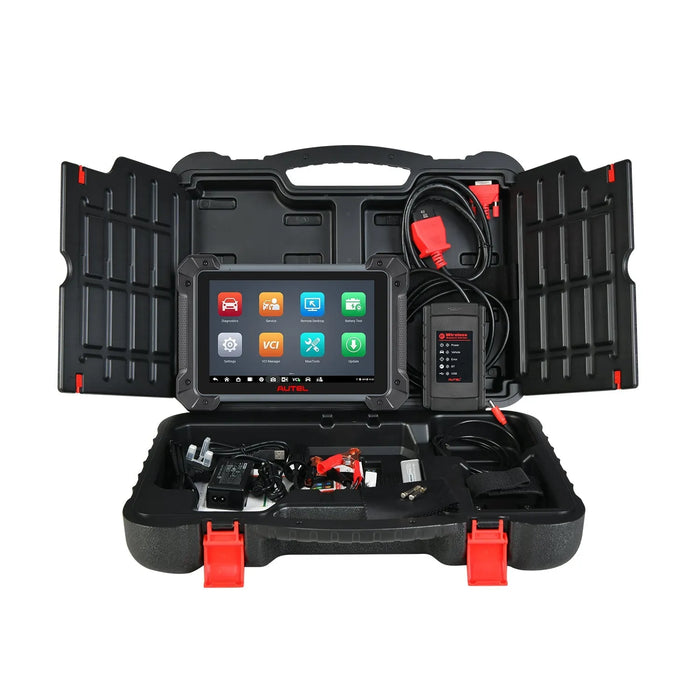

Autel MaxiCOM MK908 II Package List:

• 1x MaxiCOM MK908 II main unit
• 1x Bluetooth diagnostic interface
• 1x AC/DC adapter (12V)
• 1x User manual
• 1x Carrying case
• 1x Quick reference guide
• 1x Lighter fuse
• 1x Main cable
• 1x Micro USB Cable
• 1x Cigarette lighter
• 1x Soft cloth
• 1x Packing list
• 1x Mini USB cable
