Autel MaxiDAS DS808S-BT OBD2 Diagnostic Scanner with Android 11, Advanced ECU Coding, Bi-Directional Control, Support Multi-Language, 36+ Services, Upgraded Ver. Of DS808/MP808

items available In Stock |
Sold out
from Original price AU $899.00
Original price AU $899.00
AU $1,039.00
from AU $1,039.00
Current price AU $1,039.00
Item: DS808S-BT

Delivered by Wed, Jun 26 - Fri, Jun 28 Ship from Sydney, Australia

Service

Fast, Free Shipping & No Extra Tax

30-Day Return or Replacement

12-Month Free Warranty

Lifetime Customer Support

Pay with Ease
Trusted Delivery
free shipping by USPS, UPS or FedEx
  • Description
  • Comparison
  • Accessories
  • Downloads
  • Software Update
  • Shipping
  • Certificate
    • Description
  • Note ! ! !

    Autel DS808S-BT scanner has been discontinued, the MP808BT PRO scanner has higher performance than DS808S-BT while having upgraded hardware, if you are looking for DS808S-BT, please choose Autel MP808BT PRO!

    Autel MP808BT PRO Scanner 👉https://au.obdprice.com/products/autel-maxipro-mp808bt-pro-automotive-diagnostic-scanner

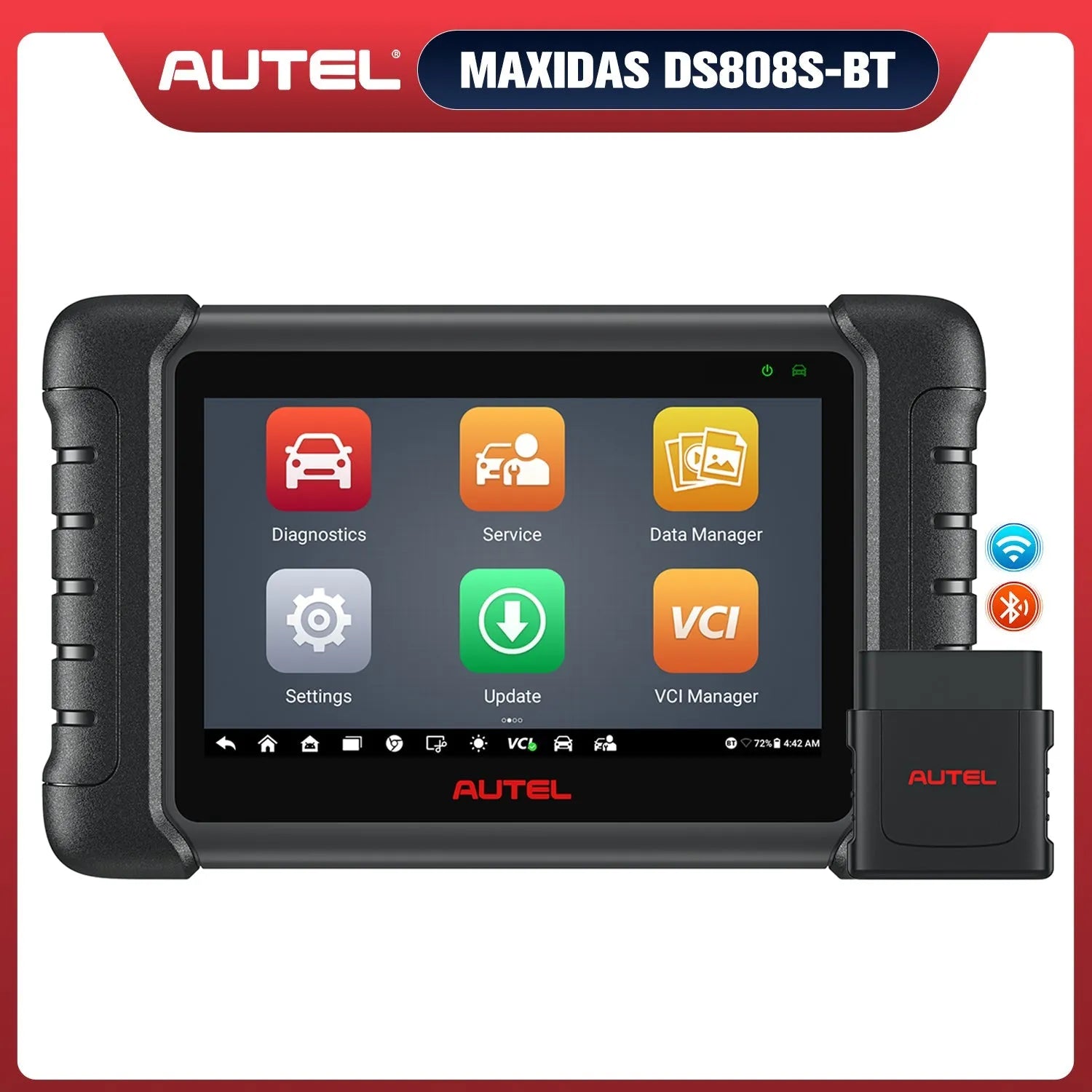

    Autel MaxiDAS DS808S-BT 2023 Full System Diagnostic Scanner

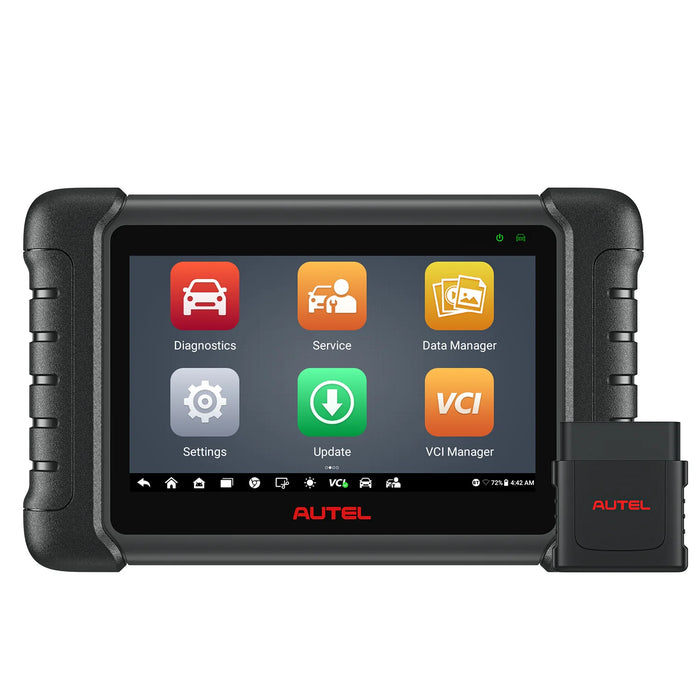

    Autel MaxiDAS DS808S-BT Scanner

    Autel MaxiDAS DS808S-BT is upgraded from DS808 / MP808, which features more advanced hardware than old models, including faster Rockchip RK3566 Processor, 4G & 64G of RAM and ROM, Android 11, 2.4 & 5GHz. Also, this DS808S-BT performs to support ECU Coding now, such as BMW, Porsche, VW, etc. And it is also cost-effective, as you can get the same diagnostic functions and services as MS906. So it is actually the best choice for a workshop or professional mechanic.



    Why Choose Autel MaxiDAS DS808S-BT?

    • No Blocking - You can use DS808S-BT all over the world.
    • Cost-Effective Choice - Less than 300.00 for MS906, Get almost the same diagnostic functions and services. After get it, It has already saved you hundreds in trips to the mechanic for diagnostics and resets.
    • OE-Level Diagnosis - MaxiDAS DS808S-BT is an automotive diagnostic scanner that can access all available ECU modules. And perform OE-Level diagnosis
    • 36+ Service Functions - DS808S-BT has More Than 36+service functions options, mainly including Oil Reset, EPB service, TPMS ID Relearn, ABS Auto Bleed, SAS Calibration , DPF Regeneration and etc
    • Advancd Functions - Bi-dirctional Control: with bi-directional control (active test) capability over various car systems, and components like solonoids, relay, switch, valves, sunroof, window, door and perform active test.
    • 1-Year Free Software Update - After you register and log in, you can enjoy a free software upgrade for one year. After one year, if you do not choose to continue to purchase the upgrade service, it will not affect the normal use of the device
    • Support Multi-Language - English/Spanish/German/French/Portuguese/Italian etc. 13+Languages.
    Autel DS808S-BT OBDII Diagnostic Scanner

    Autel MaxiDAS DS808S-BT Main Features

    1. Extensive vehicle coverage for more than 80+ US, Asian and European vehicle makes
    2. Exceptional OE-Level system coverage for all electronic systems
    3. Complete capabilities for codes, live data, active test, ECU information, adaptation, matching, etc
    4. Smart AutoVIN technology for identifying vehicles easily
    5. Automatic system and software updates with real-time push message notifications via Wi-Fi
    6. Instant remote control tech support anytime, anywhere
    7. Cloud-based MaxiFix online community provides a vast database of diagnostic and repair tips and proven filed fixes
    8. Interactive Data Logging sessions enable direct contact with Autel Technical Support for first-hand troubleshooting of diagnostic bugs and errors
    9. One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized
    10. Convenient data management system for managing internal program applications and reviewing data

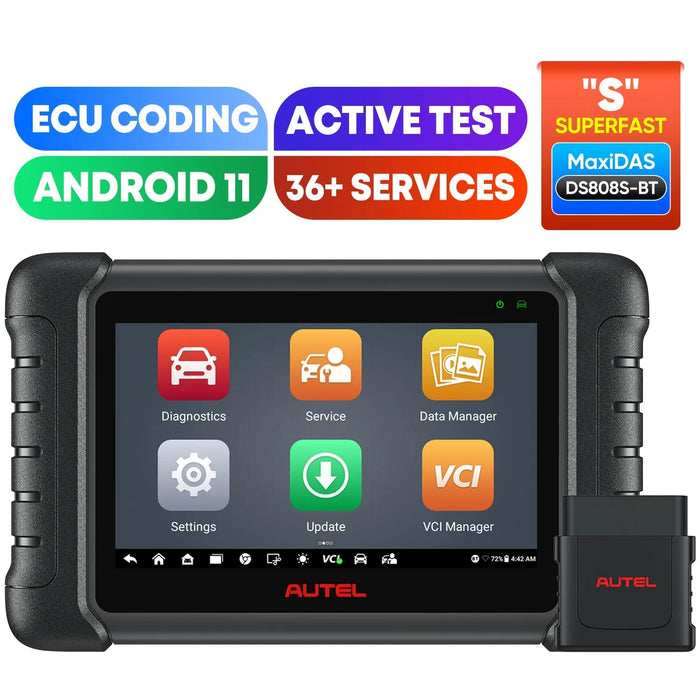

    Advanced ECU Coding

    Autel DS808S-BT comes with ECU coding for BMW/Porsche/VW/Nissan/Hyundai etc.Help to Unlock hidden features,Change dislike settings,Code the blank modules,Improce vehicel performance.

    Autel MaxiDAS DS808S-BT OBDII Scanner

    Autel MaxiDAS DS808S-BT OE-Level Diagnostic

    DS808S-BT is an automotive diagnostic scanner that accesses all available ECU modules including but not limited to PCM, ECM, EPS, PDM, TPM, BCM, ABS, and SCCM. And perform OE-Level diagnosis on ABS, SRS(Airbag), Engine, Transmission, Brake Systems and etc. This scan tool can read and clear DTCs on all car systems and show live data steam of multiple sensors in graph and text.

    Autel MaxiDAS DS808S-BT OE-Level Diagnostic

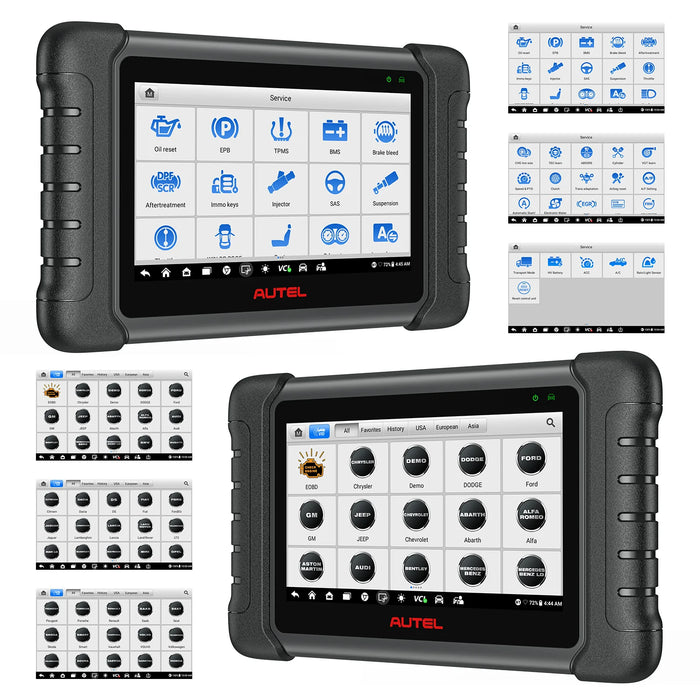

    Autel MaxiDAS DS808S-BT Special Reset Services

    DS808S-BT Supports a wide range of special functions, including Oil Reset, EPB, SAS, BMS, DPF, TPMS, and many more. One Tool with comprehensive functions which is equivalent to get MD802, MD808 PRO and Maxicheck Pro at the same time

    1. Oil Reset: Reset the oil change calculator in the engine and automatic transmission
    2. EPB: Replacement of brake pads on vehicles with an electric parking brake
    3. SAS: Adaptation of the sensor to the angular position of the steering wheel
    4. DPF: Regeneration of diesel particulate filter
    5. Brake Bleed: ABS Brake Bleeding
    6. ​​BMS: Battery registration and reset
    7. Seats, Odometer, Injector, CHG tire size, TEC Learn, Suspension, Throttle, WIN OR ROOF, Lang Change, Headlamp.

    Note: The reset service feature is not available on all models. Pls send VIN and your needs to 👉Contact us👈to check.

    Autel MaxiDAS DS808S-BT 31+ Services

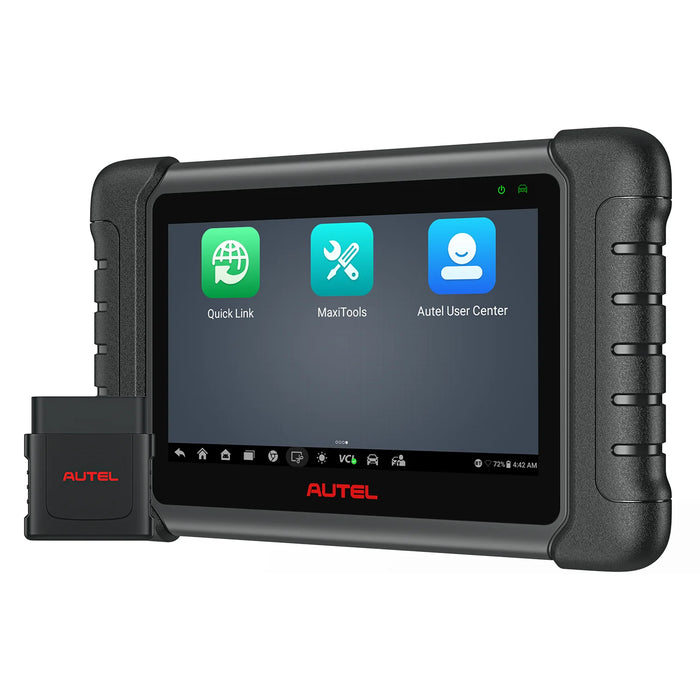

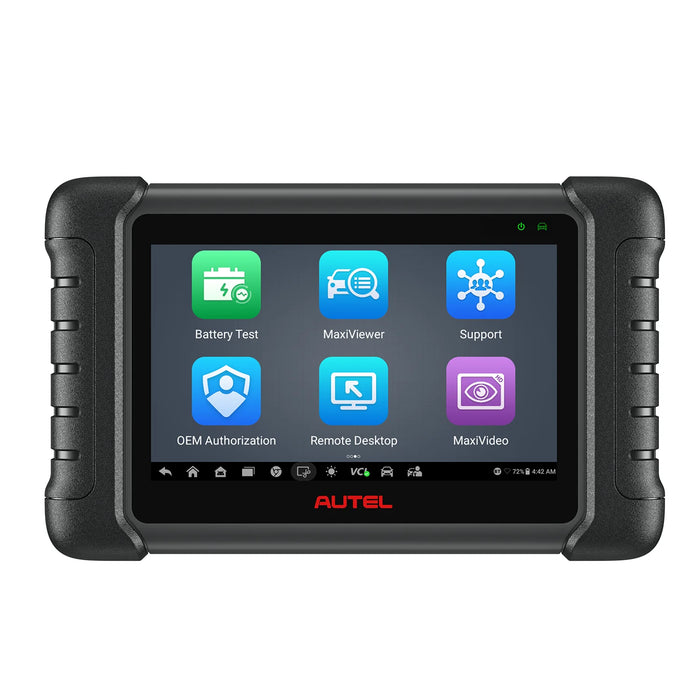

    Autel MaxiDAS DS808S-BT Additional Functions

    DS808S-BT remote technical supports with the help of which Autel technical engineers get access to the MaxiDAS DS808S-BT diagnostic scanner remotely, which greatly simplifies the maintenance of diagnostic equipment, shortens the processing time of applications.

    Active Test

    Active Test function is used to access to vehicle-specific subsystem and component tests. The tester outputs commands to the ECU to drive the actuators in order to determine the integrity of the system or parts by reading the engine ECU data, or by monitoring the operation of the actuators such as switching a solenoid, relay, or switch between two operating states.

    Autel MaxiDiag DS808S-BT Bi-Directional Control

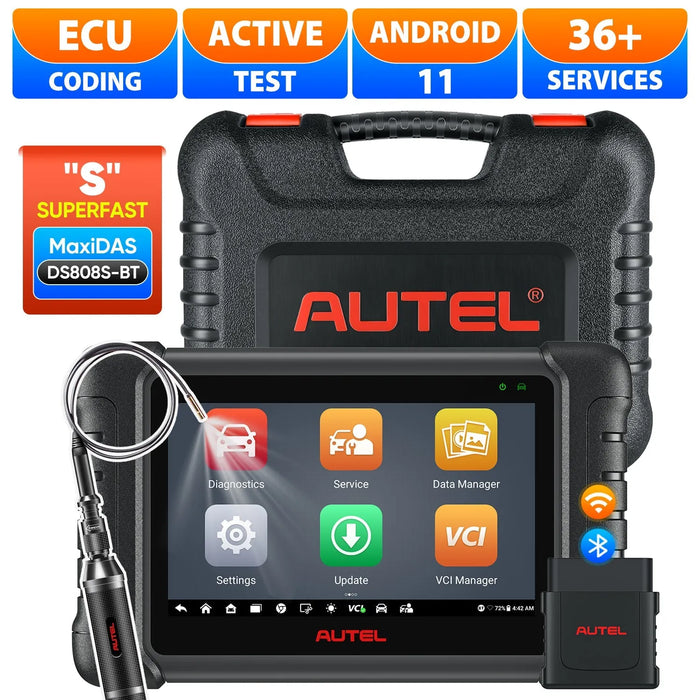

    Digital Inspection with MV108:

    This allows you to examine difficult-to-reach areas normally hidden from sight, with the ability to record digital still images and videos, in a safe and quick way.

    Autel MaxiDAS DS808S-BT Vehicles Tester Digital Inspection

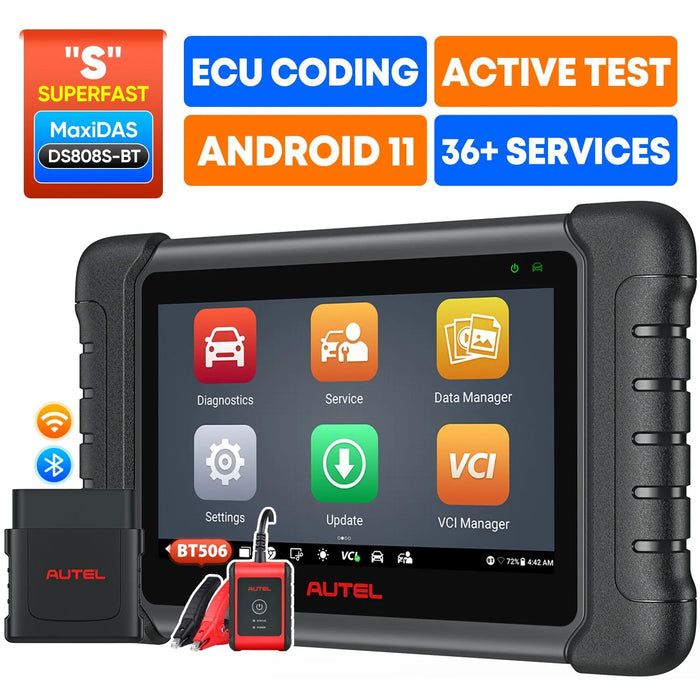

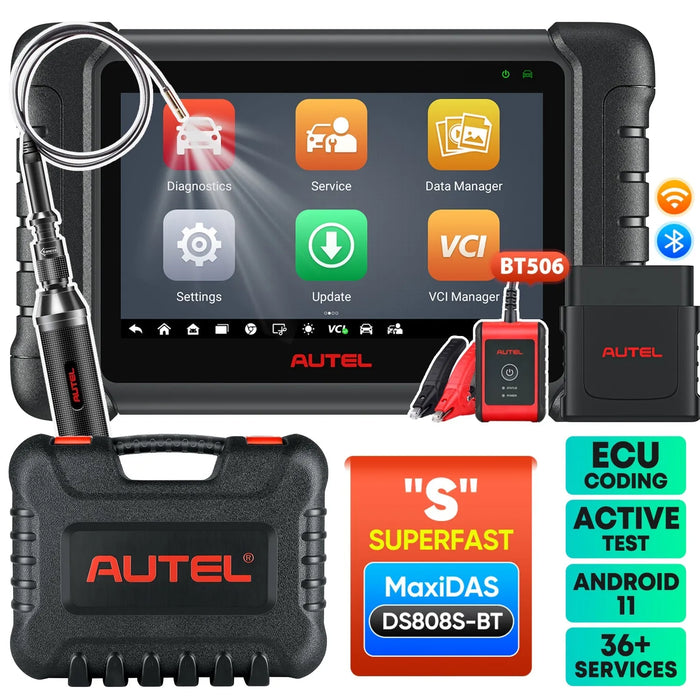

    Battery Test with BT506

    Autel MP808BT Pro can do battery test with Autel BT506, To produce a more accurate examination of the battery’s cold cranking ability and reserve capacity, which is vital to determining a battery’s true health.

    Autel MaxiDAS DS808S-BT Battery Test with BT506


    Autel MaxiDAS DS808S-BT Specifications

    Operating System: Android™ 11
    Processor Cortex-A55 quad-core processor (1.8GHz)
    Memory 4GB RAM & 64GB On-board Memory
    Display 7-inch LCD capacitive touchscreen with 1024x600 resolution
    Connectivity: Mini USB 2.0, USB2.0, Wi-Fi, HDMI Type A, Micro SD Card(supports up to 64GB), Wireless BT V2.1+EDR
    Sensors Light sensor for brightness auto adjust
    Audio Input/Output: Input: N/A, Output: buzzer
    Power and Battery 3.7 V/3200 mAh lithium-polymer battery
    Charges via 5 VDC power supply
    Tested Battery Life Around 4.5 hours of continuous use
    Battery Charging Input  5V/1.5A
    Power and Battery 3.7 V/5000mAh lithium-polymer battery, Charges via 5 VDC power supply
    Operating Temp 0 to 50°C (32 to 122°F)
    Storage Temp -10 to 60°C (-4 to 140°F)
    Dimensions (W x H x D): 270.8 mm (10.0”) x 176.0 mm(6.9”) x 36.0 mm (1.4”)
    Net Weight 885g (2.31 lb.)
    Protocols ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850PWM, ISo11898(Highspeed, Middlespeed, Lowspeed and Singlewire CAN, fault-tolerant CAN) SAE J2610, GM UART UART Echo Byte Protocol, Honda Diag-H Protocol,TP2.0,TP1.6

    • Comparison
  • Autel MaxiDAS DS808S-BT VS ms906pro vs ms906bt

    • Accessories

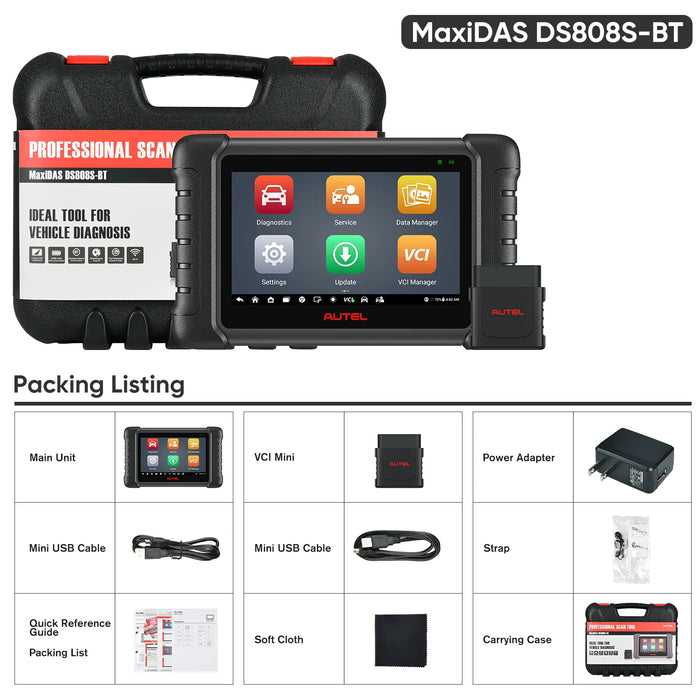

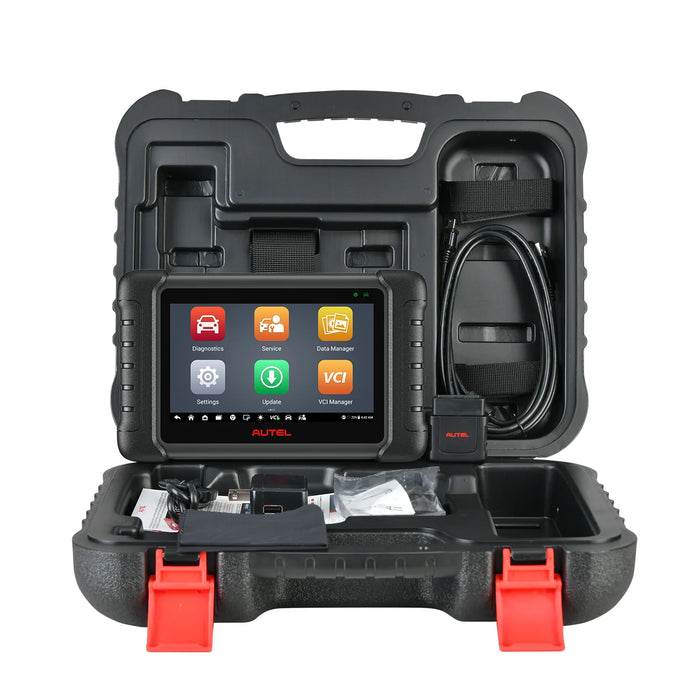

  • Autel MaxiDAS DS808S-BT Package List:

    Autel DS808S-BT Scanner Tool Packing Listing
    • 1 x DS808S-BT Main Unit
    • 1 x Mini USB Cable
    • 1 x Power Adapter
    • 1 x VCI Mini
    • 1 x Quick reference guide
    • 1 x Main cable Carry case
    • 1 x Mini USB Cable
    • 1 x Packing List
    • 1 x Soft cloth
    • 1 x Strap
    • Downloads
  • Name

    Download

     MaxiDAS DS808S-BT_User Manual_EN

    DS808S-BT_Quick Guide

    • Software Update
  • autel scanner software update 20% offer
    • Autel MaxiDAS DS808S-BT One Year Software Update Service
      from Original price
      Original price
      AU $367.00
      from AU $367.00
      Current price AU $367.00

      Autel MaxiDAS DS808S-BT One Year Software Update Service

      Autel MaxiDAS DS808S-BT 1-Year Update Service The orginal MaxiDAS DS808S-BT diagnostic tool include 1 Year FREE software updates and 1 Year warrant...

      View full details
      from Original price
      Original price
      AU $367.00
      from AU $367.00
      Current price AU $367.00

    Most Autel scanners featured 1-Year free update and of course, there also have some scanners with 2-year free updates.

    After the update subscription expires, you can continue to use the tool normally with the original software. but, to cover the latest functions and vehicle coverage, we recommend you can buy a new update subscription.

    Why buy update service from us?

    We are Autel Authorized Dealer, we offer better price than others.

    Product Model Our Update Price Market Update Price
    Maxisys Ultra 1,439 1795 Shop Now
    MS919 1439 1795 Shop Now
    MS909 1055 1495 Shop Now
    Maxisys Elite 960 1295 Shop Now
    Maxisys CV 1,535 1,895 Shop Now
    MK908P 960 1295 Shop Now
    MK908 1001 895 Shop Now
    MS908P/ MS908S Pro 1272 1695 Shop Now
    MS908/ MS908S 1,040 1,895 Shop Now
    MS906TS 1,024 1,795 Shop Now
    MK906BT 696 995 Shop Now
    MS906BT 600 895 Shop Now
    MS906 415 695 Shop Now
    Maxisys Mini MS905 848 1,295 Shop Now
    DS808TS 720 1,099 Shop Now
    MP808TS 719 1,099 Shop Now
    DS808/ DS808K 392 749.5 Shop Now
    MP808/ MP808K 465 849.5 Shop Now
    DS708 1,006 1,349.5 Shop Now
    MK808TS 336 695 Shop Now
    MK808BT 166 450 Shop Now
    MK808 160 324.5 Shop Now
    MX808TS 336 595 Shop Now
    MX808 128 324.5 Shop Now
    IM608/IM600 960 1,295 Shop Now
    IM508/IM100 392 649.5 Shop Now
    TS608 330 795 Shop Now

    FAQ about the subscription:

    Q: Is there a physical card of subscription to be sent, so I can add the subscription by myself?

    A: No, this subscription doesn't need delivery. We will add it for you directly.



    Q: My device has been expired 1 year, if I buy the subscription now, can I get the updates of last year?

    A: Yes, whatever how long your device expired, if you buy the subscription now, you will get all updates, even the updates during its expiration.

    Note: Devices that expired after 1st January 2015 can be updated to the last version of the software.



    Q: My device will be expired in 2 months, if I buy the subscription now, will it cover the 2 months or extend within the 2 months?

    A: The subscription will be extended within the 2 months.

    For example: Today is 11th May 2022, and your device will be expired on 30th July 2022.And you buy the subscription on 11th May 2022.After we add the one-year update service for you, your device will be expired on 30th July 2023.



    Q: What should I do if I want 2 year updates?

    A: You can purchase 2 pcs of the "one year update service".

    Similarly, you can choose the quantity when you purchase the subscription, so we will add corresponding year for you.
