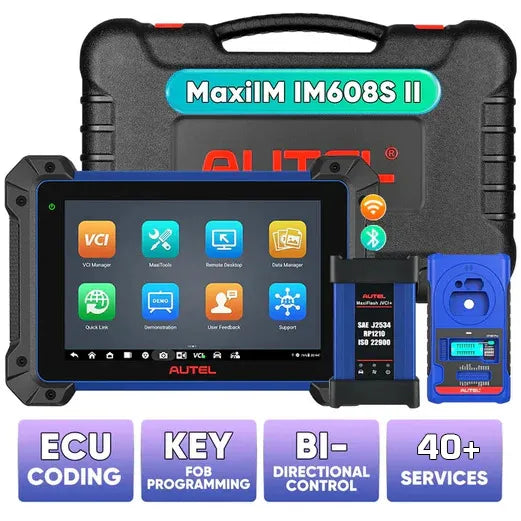

2026 Autel MaxiIM IM608 PRO II
Note: IM608S II = IM608 II = IM608 Pro II, these 3 model perform exactly same functions. It is the upgraded of IM608 Pro/ IM608/ IM508S, has NO-IP Restriction & supports 21+ languages, comes with enhanced Hardware to greatly improve your work efficiency. Besides, newly added ECU Coding, 40+ Services, Active Tests, Full Diagnosis, DoIP/ CAN FD Protocols. Equipped with these features, making it the Top Key Programming Tool in Autel.
Experience up to 200% faster diagnostics and programming with Autel’s latest Ultra-Top hardware upgrade, powered by Android 10.0 and a Qualcomm Snapdragon 660 processor. The Autel MaxiIM IM608 PRO II features dual-band Wi-Fi (2.4 & 5 GHz), 4 + 128 GB of expandable storage, and a crisp 10.1″ capacitive touchscreen (1920 × 1200). Capture clear under-hood images with the 16 MP rear camera, and enjoy built-in GPS and ambient light sensing for precise diagnostics in any environment.
Key Reason To Buy Autel IM608S II IMMO Key Programmer Tool
Complete IMMO Function: IM608S II IMMO Key Programmer Tool is a professional anti-theft tool with functions such as reading PIN/CS [All Keys Lost], key generation, IMMO key learning and writing. Benz 3d generation IMMO,BMW CAS4/3/2 key learning adaption,etc.
All-in-One Key Programming: The key immobilizer functions in IM608S II include key generation, key learning,remote learning&control, immobilizer reset, refresh and encoding, as well as transponder and EEPROM/MCU reading and writing.
Bi-directional Control(Active Test): Autel IM608S II key programming tool can do active tests to send action commands, monitor the system running, and accurately pinpoint the problems that could be the engine, injector, windows, doors, fual pump, etc.
OE-Level All Systems Diagnostics: One-click Auto VIN or Scan VIN/License to identify vehicle information and fast activating diagnostics. Autel IM608S II automotive scanner operates OE all-system check for all accessible systems including ABS/TPMS/IMMO/Engine/Windows, etc.
Enhanced Functions with XP400 PRO: Work with this key&chip programming tool XP400 PRO, the IM608S II Full Kit enhances IMMO functions for BMW, Benz, Audi, and other vehicles. It handles IMMO ECU reset, adaptation, refresh, and coding efficiently.
Advanced ECU Coding: ECU Coding helps you to shoot ECU-related issues for IMMO ECU of Benz/BMW. It can easily modify ECU modules for 99% vehicles.

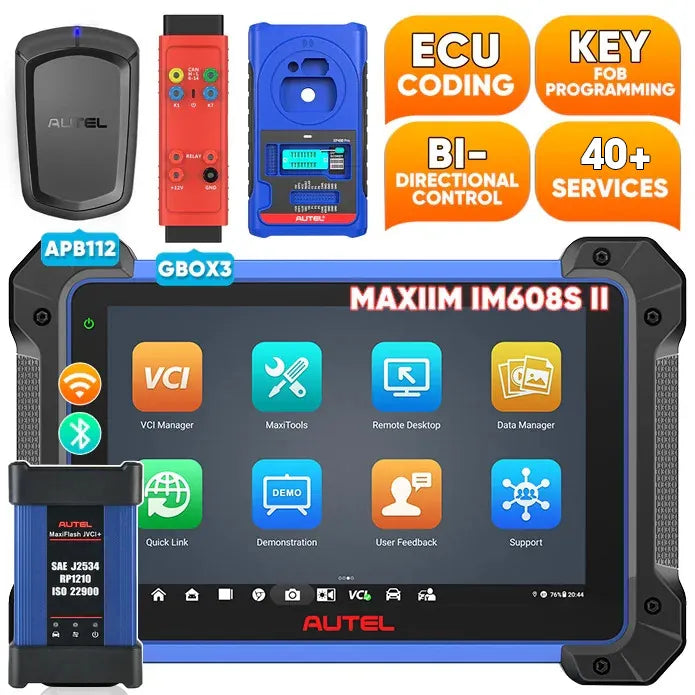

Professional All Key Lost Function: MaxiIM IM608S II key programmer, combined with the AUTEL APB112 Smart Key Simulator, offers advanced capabilities for Mercedes-Benz All Key Lost situations.
Guided Functions: VAG guided functions offer step-by-step tips to solve complex module replacement or system diagnostics. (For VW, Audi, Skoda, Seat, Man LD).
40 Maintenance Services: With Autel IM608S II, you can operate more than 40 useful services and functions, such as oil reset, EPB reset, throttle reset, ABS bleed, injector coding, brake reset, headlight matching, etc.
15000+ Vehicle Coverage: Autel IM608S II automotive diagnostic is compatible with 15000+ US, EU and Asian cars including 12V sedans, light trucks and SUVs. With the latest software, it covers 99% of vehicles from 1996 to 2026.
5XFaster - Upgraded From IM608 PRO/ IM608
- Android 4.4.2➡10.0 OS
- ExynosT52606➡Qualcomm SDM660
- 2+64G Memory➡4+128G Memory
- 8MP➡16MP Rear Camera
- JVCI ➡ JVCI+
- 1.4a HDMI➡2.0 HDMI
- 500+ Active Tests➡3000+ Active Tests
- Add ECU Coding/Adaption
- 28+ Service for 100+ Brands➡40+ Service for 150+ Brands
XP400PRO Advanced All-in-One Key Programmer Feature
- Expanded EEPROM functions for more component access
- 170+ types Odometer component reading functions
- 180+ Immobilizer ECU component types
- 40+ Engine ECU component types
- 2000+ MCU component types
- 440+ EEPROM component types
- Compatible with IM508 and IM608
Autel MaxiFlash JVCI+ J2534 Bluetooth Programming Device Feature
- Use with windows PC for vehicle module programming, J2534-1 and J2534-2 compliant
- Bluetooth-enabled communication interface
- Support CAN FD, 4 CAN Channels, and DoIP
- Supports D-PDU, IS O22900-1 and ISO 22900-2
- Program BMW and Mercedes from MaxiSYS MS909 Tablet
- RP1210 compliant
- Includes One-Year Limited Warranty
Autel IM608S II Extensive Function
Remote Desk Function: This function features a built-in TeamViewer app, allowing for ad-hoc remote support from Autel’s support center, colleagues, or friends. This capability enables others to control your MaxiIM tablet from their PC via TeamViewer software.

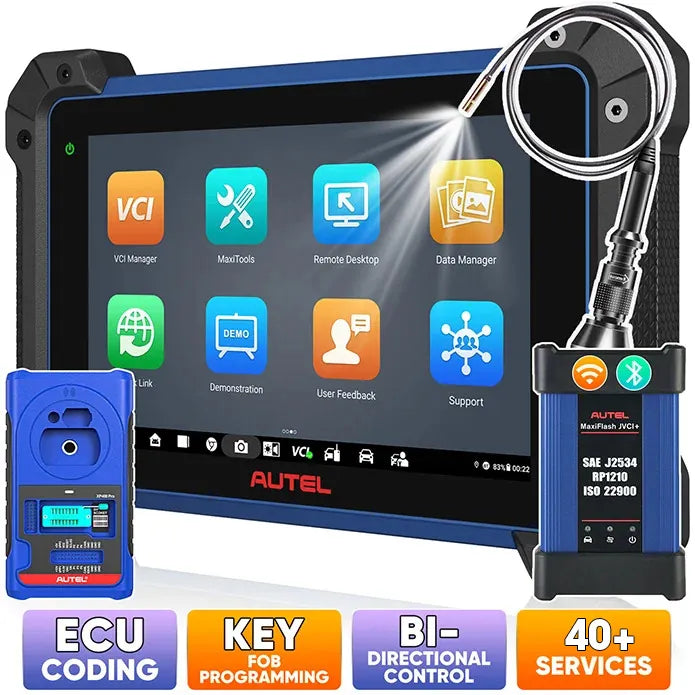

Digital Inspection(Work with MV108): With the Autel MV108, you can inspect hard-to-reach areas that are usually hidden from sight, allowing you to safely and quickly examin mechanical systems and infrastructure. It is capable of providing digital still images and videos, providing you with a professional solution.
Remote Expert: Allows users to remotely contact experienced experts via it to get direct help with any diagnostic issues and improve maintenance efficiency.
Autel Cloud Management: Autel automotive scanner IM608S II provides a cloud-based maintenance and diagnostic platform that allows users to store, view and share reports of all Autel tablet tools, helping users improve work efficiency and service quality.
Support CAN FD/DolP & P-DU/RP1210: Same as MaxiSys Ultra/MS919/MS909, Autel IM608S II professional automotive scanner supports the latest D-PDU and RP1210, CAN FD and DOIP protocols,increasing the data transmission speed by 5 times for GM, Volvo, Land Rover, Jaguar and others.
Advanced ECU Programming For BENZ/ BMW Detail
●Replacing the Existing Software/ Firmware in the ECUs
●Programming New ECUs for BENZ/ BMW
● Reprograming Adaptive Data
● ECU Adaptation/ Reprogramming after Refit
● Fixing Software-Controlled Drivability & Emission Issues
● Enhance the Durability of Mechanical Parts
● Improve Fuel Efficiency
● Reduce Power Loss
● Benz
- Post-programming Learning Function
- Programming Restoration
- Vehicle Configuration Synchronization
- Read/ Write Adjustment Value
● BMW
- Support Program to 2211
- Support HTTP Program
- Automatic Calculation Programming File
- Personalized Data Backup
About CAN FD / DoIP PROTOCOLS:
J2534 BRING CAN FD / DoIP/ SAE J2534/ D-PDU/ RP1210 PROTOCOLS
- CAN FD: For MY2020+ FM Models, No Need CAN FD Adapters
- DoIP: For BMW E/ F/ G Chassis, Jaguar, and Land Rover vehicle make.
Autel IM608 Pro II Specs
| Operating System |
Android 10 |
| Processor |
Qualcomm SDM660 Octa-core Processor (2.2GHz ) |
| Memory |
4GB RAM &128GB On-board Memory |
| Display |
10.1-inch LED capacitive touchscreen with 1920x1200 resolution |
| Connectivity |
Wi-Fi(802.11a/b/g/n/ac) |
| USB 2.0 |
| SD Card (Support up to 64GB) |
| Sensors |
Light sensor for brightness auto adjust |
| Power and Battery |
15000 mAh 3.8 V lithium-polymer battery Charging via 12 V AC/DC power supply with the temperature between 0°C and 45°C |
| Input Voltage |
12V (9-24 V) |
| Power Consumption |
6.5W |
| Operating Temp |
0 to 50°C (32 to 122°F) |
| Storage Temp |
-20 to 60°C (-4 to 140°F) |
| Dimensions(WXHX D) |
300 mm (11.81”) x 220 mm (8.66”) x 50 mm (1.97”) |
| Weight |
NW: 1.58 kg (3.48 lb.) |
| Protocols |
ISO 9142-2, ISO 14230-2, ISO 15765-4, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, CAN ISO 11898, Highspeed, Middlespeed, Lowspeed and Singlewire CAN, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP 2.0, TP 1.6, SAE J1939, SAE J1708, Fault-Tolerant CAN |
